R 2 557,60
inc. vat
In stock
SKU
5740824

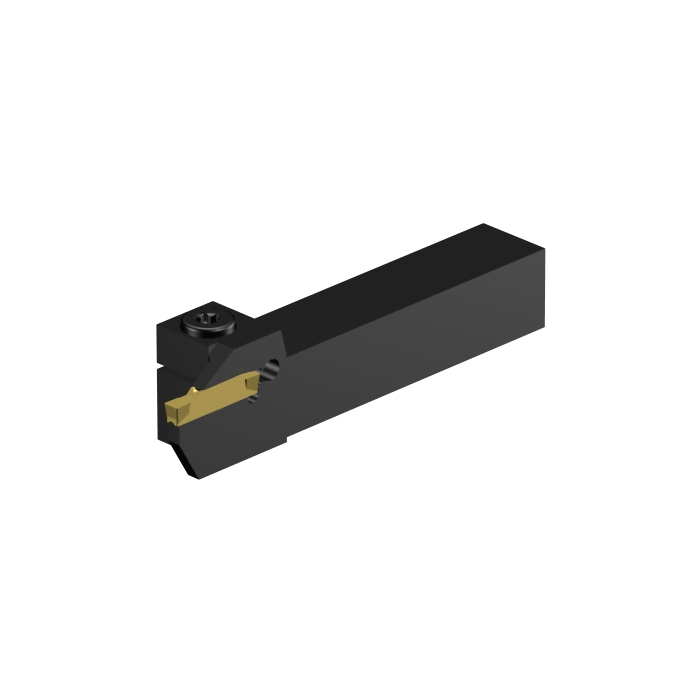

CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
LF - Functional Length | 114.3mm |
TQ - Torque | 4.5Nm |
WT - Weight Of Item | 0.304kg |
OAL - Overall Length | 114.3mm |
OHX - Maximum Overhang | 33.9852mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 21.0058mm |
HF - Functional Height | 19.05mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.35mm |
H - Shank Height | 19.05mm |
CW - Cutting Width | 4mm |
B - Shank Width | 19.05mm |
CDX - Cutting Depth Maximum | 12.954mm |
ORDCODE | RF123H051-12BM |
ADINTMS - Adaptive Interface Machine Direction | M_VKT01_B1212_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:40:00.000 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCH2_5 |
Hand | R |
MIID - Master Insert Identification | N123H2-0400-0004-TF |
SSC - Insert Seat Size Code | H |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
