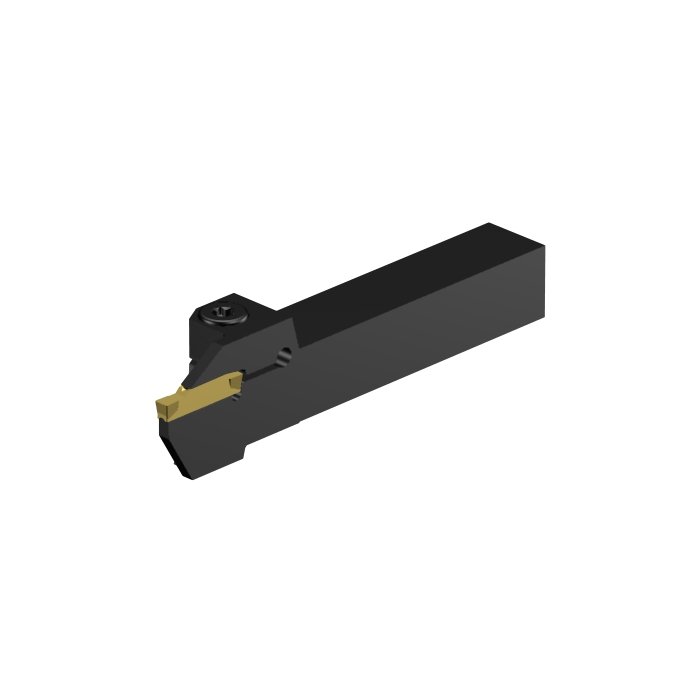

Sandvik Coromant RF123H087-12D CoroCut™ 1-2 shank tool for parting & grooving

R 2 512,75 inc. vat
Out of stock
SKU
5856802
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 127mm
TQ - Torque 6Nm
WT - Weight Of Item 0.326kg
OAL - Overall Length 127mm
OHX - Maximum Overhang 44.1mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 19.65mm
HF - Functional Height 19.05mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
H - Shank Height 19.05mm
CW - Cutting Width 4mm
B - Shank Width 19.05mm
CDX - Cutting Depth Maximum 22.098mm
CUTDIA - Work Piece Parting Diameter Maximum 52.5mm
ORDCODE RF123H087-12D
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B1212_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 15:35:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCH2_5
Hand R
MIID - Master Insert Identification N123H2-0400-0004-TF
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
