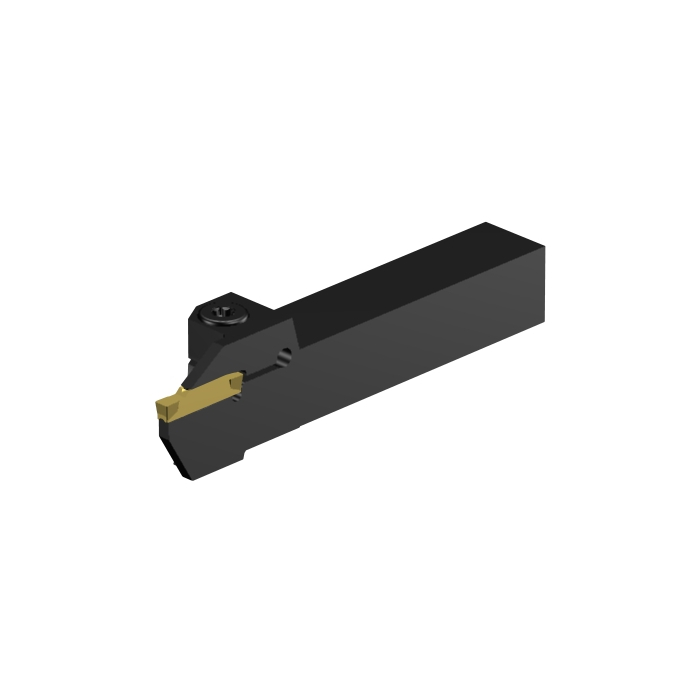

Sandvik Coromant RF123H22-2020D CoroCut™ 1-2 shank tool for parting & grooving

R 2 512,75 inc. vat
In stock
SKU
5856788
CoroCut® 1-2 shank tool for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for parting and grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 125mm
TQ - Torque 6Nm
WT - Weight Of Item 0.354kg
OAL - Overall Length 125mm
OHX - Maximum Overhang 44mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 20.6mm
HF - Functional Height 20mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
H - Shank Height 20mm
CW - Cutting Width 4mm
B - Shank Width 20mm
CDX - Cutting Depth Maximum 22mm
CUTDIA - Work Piece Parting Diameter Maximum 52.5mm
ORDCODE RF123H22-2020D
ADINTMS - Adaptive Interface Machine Direction M_VKT01_A2020_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 15:35:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCH2_5
Hand R
MIID - Master Insert Identification N123H2-0400-0004-TF
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 1
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
