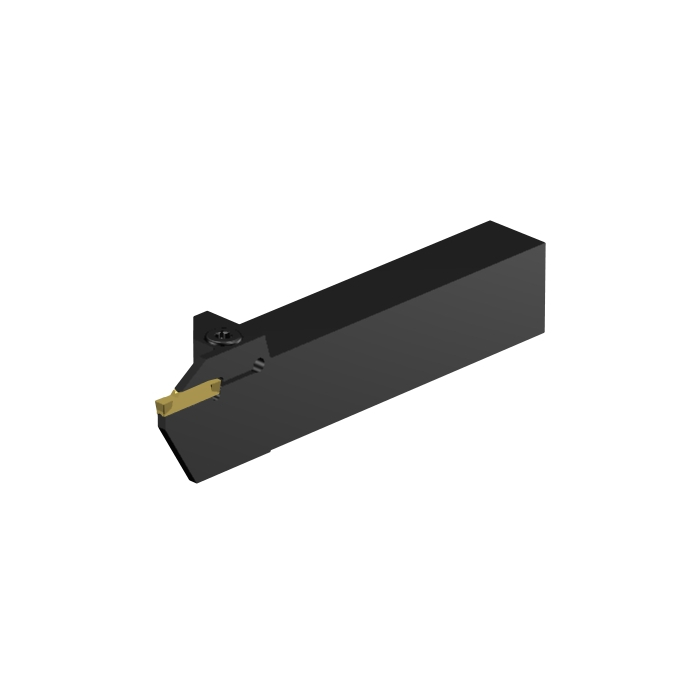

Sandvik Coromant RF123H25-3225BM CoroCut™ 1-2 shank tool for parting & grooving

Name: Sandvik Coromant RF123H25-3225BM CoroCut™ 1-2 shank tool for parting & grooving
SKU: 5740907
Price: 2942.85 ZAR
Availability: InStock

Be the first to review this product

R 2 942,85 inc. vat

In stock

SKU

5740907

CoroCut® 1-2 shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	170mm
TQ - Torque	7Nm
WT - Weight Of Item	921g
OAL - Overall Length	170mm
OHX - Maximum Overhang	47mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	26mm
HF - Functional Height	32mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.35mm
H - Shank Height	32mm
CW - Cutting Width	4mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	25mm
ORDCODE	RF123H25-3225BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A3225_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:42:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCH2_5
Hand	R
MIID - Master Insert Identification	N123H2-0400-0004-TF
SSC - Insert Seat Size Code	H
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
