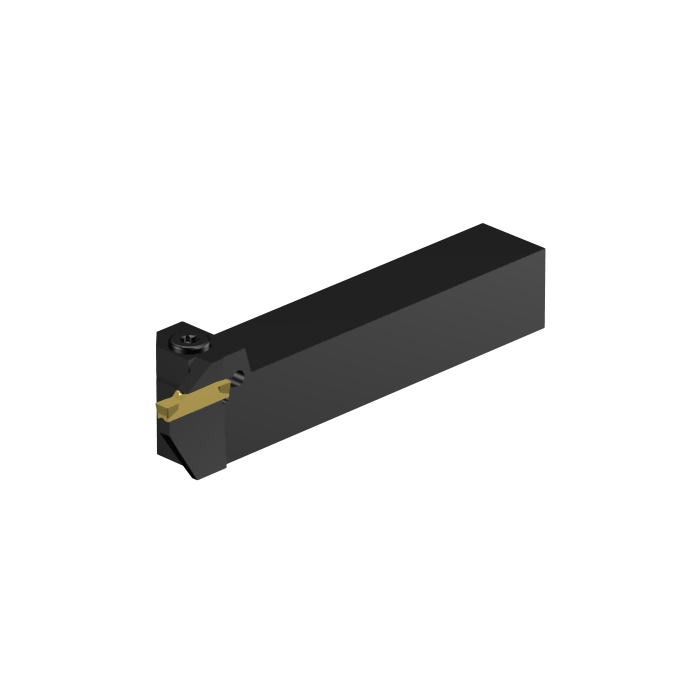

Sandvik Coromant RF123J050-16B-175BM CoroCut™ 1-2 shank tool for face grooving

R 2 941,70 inc. vat
Out of stock
SKU
5908234
CoroCut® 1-2 shank tool for face grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 shank tool for face grooving
More Information
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 152.4mm
TQ - Torque 4Nm
WT - Weight Of Item 0.715kg
OAL - Overall Length 152.4mm
OHX - Maximum Overhang 33.7mm
LSC - Clamping Length 118.7mm
KAPR - Tool Cutting Edge Angle 90deg
BAWS - Workpiece Side Body Angle 0deg
WF - Functional Width 26mm
HF - Functional Height 25.4mm
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle 0deg
Insert Thickness 4.35mm
H - Shank Height 25.4mm
CW - Cutting Width 5mm
B - Shank Width 25.4mm
CDX - Cutting Depth Maximum 12.7mm
DAXN - Minimum Axial Groove Outside Diameter 185mm
DAXX - Maximum Axial Groove Outside Diameter 500mm
ORDCODE RF123J050-16B-175BM
ADINTMS - Adaptive Interface Machine Direction M_VKT01_B1616_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 16:08:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_CCJ2_8
Hand R
MIID - Master Insert Identification N123J2-0500-0004-TF
SSC - Insert Seat Size Code J
CICT - Cutting Item Count 1
AXGSUP - Axial Groove Support Direction 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
