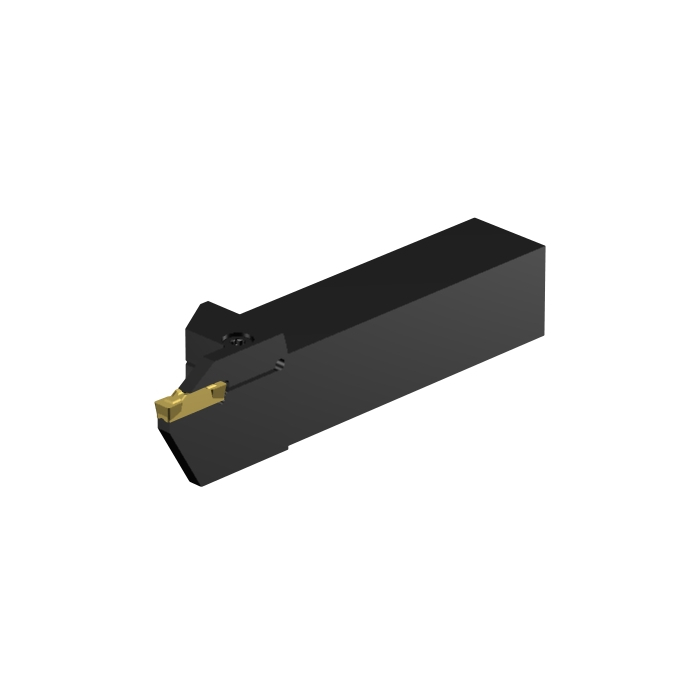

Sandvik Coromant RF123L138-24BM CoroCut™ 1-2 shank tool for parting & grooving

Name: Sandvik Coromant RF123L138-24BM CoroCut™ 1-2 shank tool for parting & grooving
SKU: 5741008
Price: 5295.75 ZAR
Availability: InStock

Be the first to review this product

R 5 295,75 inc. vat

In stock

SKU

5741008

CoroCut® 1-2 shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	203.2mm
TQ - Torque	7.5Nm
WT - Weight Of Item	1.995kg
OAL - Overall Length	203.2mm
OHX - Maximum Overhang	60.96mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	40.9956mm
HF - Functional Height	38.1mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.05mm
H - Shank Height	38.1mm
CW - Cutting Width	8mm
B - Shank Width	38.1mm
CDX - Cutting Depth Maximum	35.052mm
ORDCODE	RF123L138-24BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_B2424_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 05:23:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCL2_6
Hand	R
MIID - Master Insert Identification	N123L2-0800-0008-TF
SSC - Insert Seat Size Code	L
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
