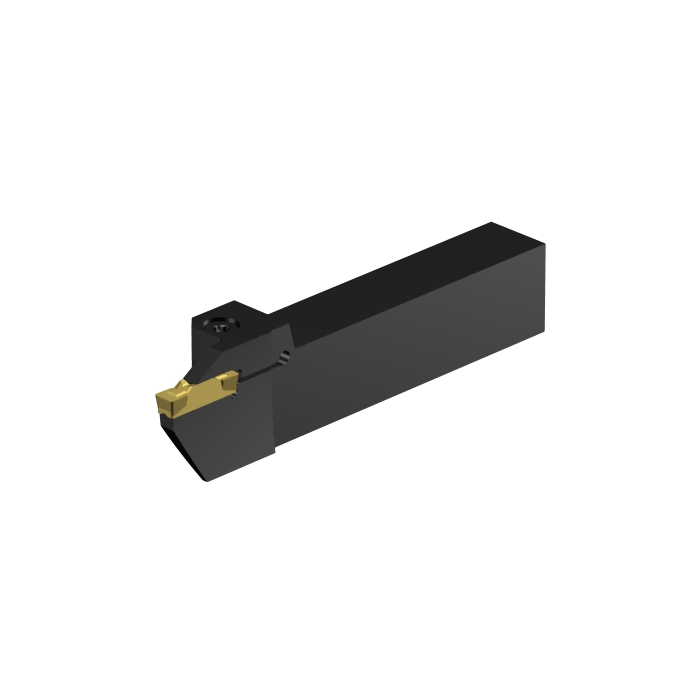

Sandvik Coromant RF123L28-3225B-140BM CoroCut™ 1-2 shank tool for face grooving

Name: Sandvik Coromant RF123L28-3225B-140BM CoroCut™ 1-2 shank tool for face grooving
SKU: 5908201
Price: 2941.70 ZAR
Availability: InStock

Be the first to review this product

R 2 941,70 inc. vat

In stock

SKU

5908201

CoroCut® 1-2 shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for face grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	170mm
TQ - Torque	6.7Nm
WT - Weight Of Item	0.957kg
OAL - Overall Length	170mm
OHX - Maximum Overhang	56mm
LSC - Clamping Length	114mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	26mm
HF - Functional Height	32mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.05mm
H - Shank Height	32mm
CW - Cutting Width	8mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	28mm
DAXN - Minimum Axial Groove Outside Diameter	156mm
DAXX - Maximum Axial Groove Outside Diameter	400mm
ORDCODE	RF123L28-3225B-140BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A3225_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 16:07:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCL2_6
Hand	R
MIID - Master Insert Identification	N123L2-0800-0008-TF
SSC - Insert Seat Size Code	L
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
