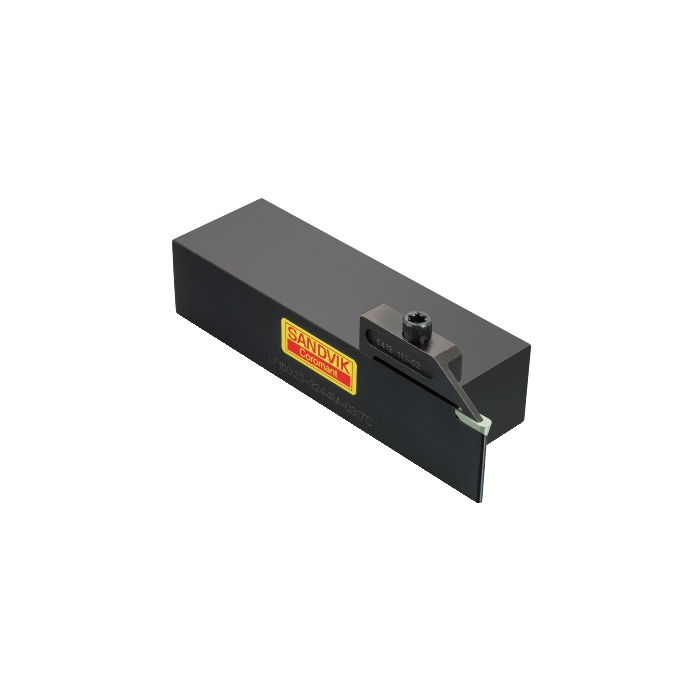

Sandvik Coromant RF150.23-3244M-0635C T-Max™ shank tool for parting & grooving

Name: Sandvik Coromant RF150.23-3244M-0635C T-Max™ shank tool for parting & grooving
SKU: 5741032
Price: 2990.00 ZAR
Availability: InStock

Be the first to review this product

R 2 990,00 inc. vat

In stock

SKU

5741032

T-Max® shank tool for parting and grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® shank tool for parting and grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	5Nm
WT - Weight Of Item	1.48kg
OAL - Overall Length	150mm
OHX - Maximum Overhang	22.352mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	44.6mm
HF - Functional Height	32mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.35mm
H - Shank Height	32mm
CW - Cutting Width	16.129mm
B - Shank Width	44mm
CDX - Cutting Depth Maximum	29mm
ORDCODE	RF150.23-3244M-0635C
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A3244_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2021-12-21 06:14:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CA3_1
Hand	R
MIID - Master Insert Identification	150.23-0635
SSC - Insert Seat Size Code	3
CICT - Cutting Item Count	1
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
