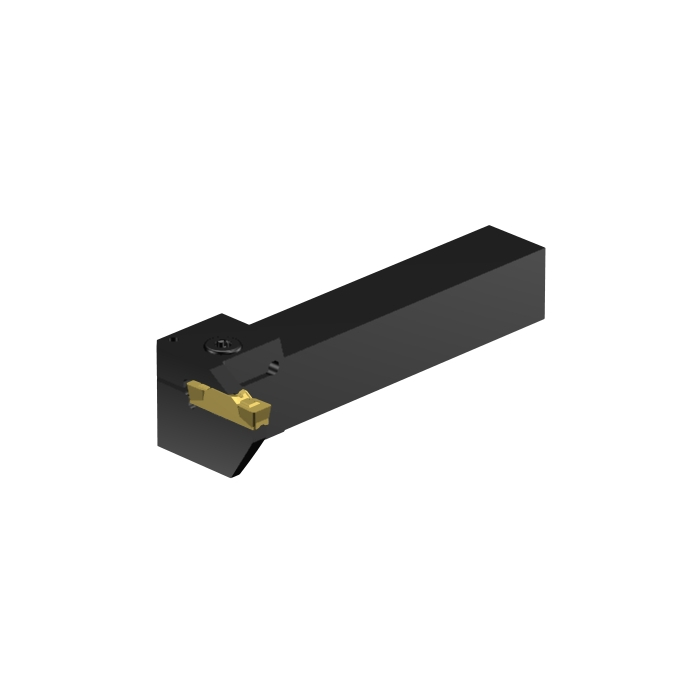

Sandvik Coromant RG123L20-2525B-140BM CoroCut™ 1-2 shank tool for face grooving

Name: Sandvik Coromant RG123L20-2525B-140BM CoroCut™ 1-2 shank tool for face grooving
SKU: 5741363
Price: 3236.10 ZAR
Availability: InStock

Be the first to review this product

R 3 236,10 inc. vat

In stock

SKU

5741363

CoroCut® 1-2 shank tool for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 shank tool for face grooving

More Information

More Information
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
TQ - Torque	6.2Nm
WT - Weight Of Item	798g
OAL - Overall Length	152.2mm
OHX - Maximum Overhang	37.4mm
LSC - Clamping Length	112.6mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	47mm
HF - Functional Height	25mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	6.05mm
H - Shank Height	25mm
LPR - Protruding Length	152.2mm
CW - Cutting Width	8mm
B - Shank Width	25mm
CDX - Cutting Depth Maximum	20mm
DAXN - Minimum Axial Groove Outside Diameter	156mm
DAXX - Maximum Axial Groove Outside Diameter	400mm
ORDCODE	RG123L20-2525B-140BM
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A2525_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-08-18 15:45:00.000
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCL2_6
Hand	R
MIID - Master Insert Identification	N123L2-0800-0008-TF
SSC - Insert Seat Size Code	L
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
