Sandvik Coromant S10R-SVUBL 2E CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant S10R-SVUBL 2E CoroTurn™ 107 boring bar for turning
SKU: 5752047
Price: 2210.30 ZAR
Availability: OutOfStock

R 2 210,30 inc. vat

Out of stock

SKU

5752047

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
DCON - Connection Diameter	15.875mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	203.2mm
BD - Body Diameter	15.875mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.3kg
OAL - Overall Length	203.2mm
OHX - Maximum Overhang	63.5mm
LSC - Clamping Length	171.5mm
KAPR - Tool Cutting Edge Angle	93deg

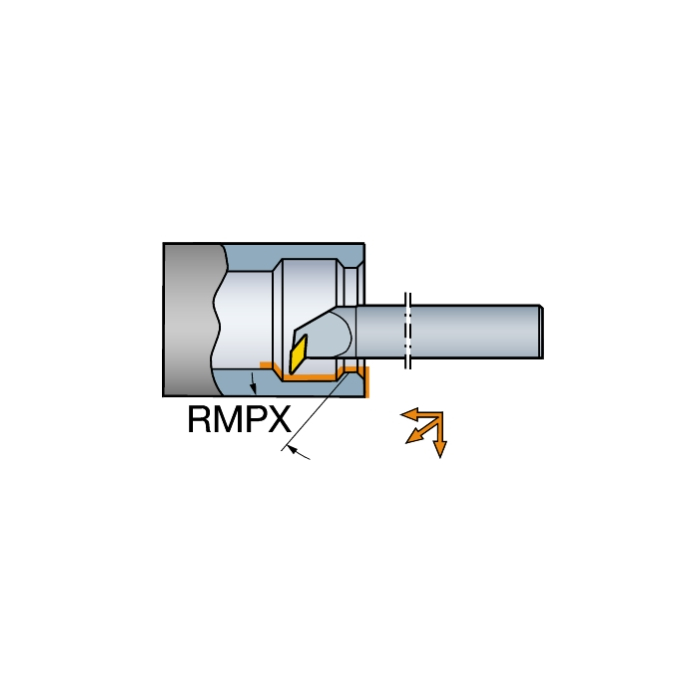

RMPX - Maximum Ramping Angle	50deg
DMIN - Minimum Bore Diameter	22.02mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	31.75mm
WF - Functional Width	12.7mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	5deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	14.224mm
ORDCODE	S10R-SVUBL 2E
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_R6250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 02:00:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VB1102_1
Hand	L
MIID - Master Insert Identification	VBMT 11 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
