Sandvik Coromant S16T-SVUBL 2D CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant S16T-SVUBL 2D CoroTurn™ 107 boring bar for turning
SKU: 5752003
Price: 4356.20 ZAR
Availability: OutOfStock

R 4 356,20 inc. vat

Out of stock

SKU

5752003

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	304.8mm
BD - Body Diameter	25.4mm
TQ - Torque	0.9Nm
WT - Weight Of Item	1.12kg
OAL - Overall Length	304.8mm
OHX - Maximum Overhang	101.6mm
LSC - Clamping Length	254mm
KAPR - Tool Cutting Edge Angle	93deg

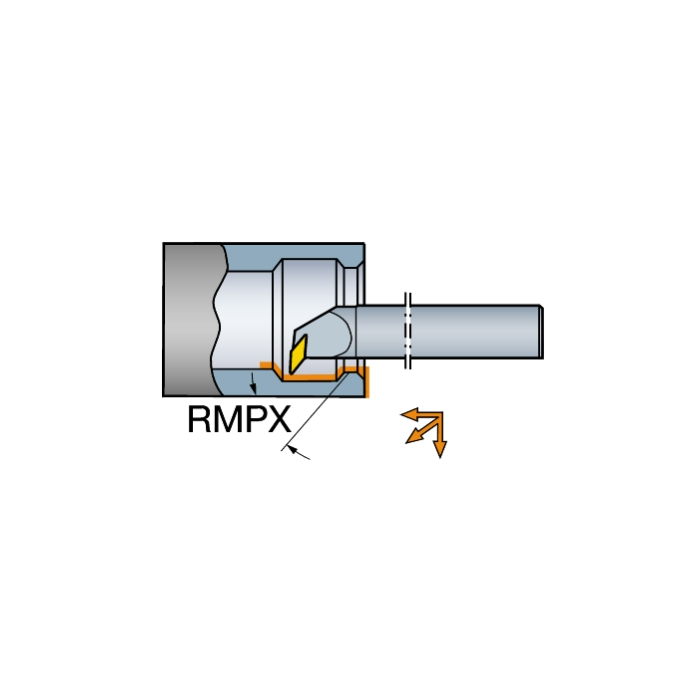

RMPX - Maximum Ramping Angle	50deg
DMIN - Minimum Bore Diameter	33.02mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	50.8mm
WF - Functional Width	19.05mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-3deg
AN - Clearance Angle Major	5deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	23.114mm
ORDCODE	S16T-SVUBL 2D
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_S1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 03:17:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VB1102_1
Hand	L
MIID - Master Insert Identification	VBMT 11 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
