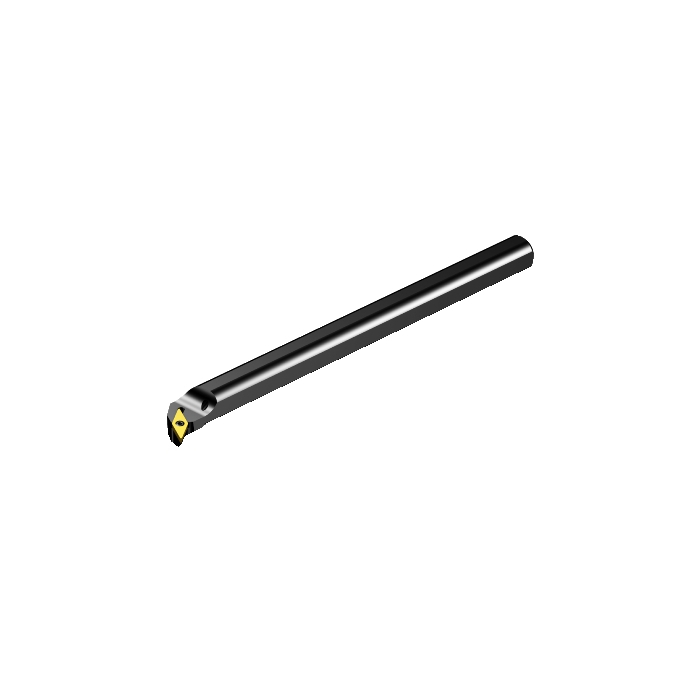

Sandvik Coromant S20S-SVQBR 11-E CoroTurn™ 107 boring bar for turning

Name: Sandvik Coromant S20S-SVQBR 11-E CoroTurn™ 107 boring bar for turning
SKU: 5751650
Price: 3041.75 ZAR
Availability: OutOfStock

R 3 041,75 inc. vat

Out of stock

SKU

5751650

CoroTurn® 107 boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 boring bar for turning

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	250mm
BD - Body Diameter	20mm
TQ - Torque	0.9Nm
WT - Weight Of Item	0.59kg
OAL - Overall Length	250mm
OHX - Maximum Overhang	80mm
LSC - Clamping Length	216.6mm
KAPR - Tool Cutting Edge Angle	107.5deg
RMPX - Maximum Ramping Angle	35deg
DMIN - Minimum Bore Diameter	27mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	33.4mm
WF - Functional Width	15mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-6deg
AN - Clearance Angle Major	5deg
IC - Inscribed Circle Diameter	6.35mm
RE - Corner Radius	0.396875mm
Insert Thickness	2.38125mm
H - Shank Height	18mm
ORDCODE	S20S-SVQBR 11-E
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-04-07 03:09:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_VB1102_1
Hand	R
MIID - Master Insert Identification	VBMT 11 02 04
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	V
SSC - Insert Seat Size Code	11
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
