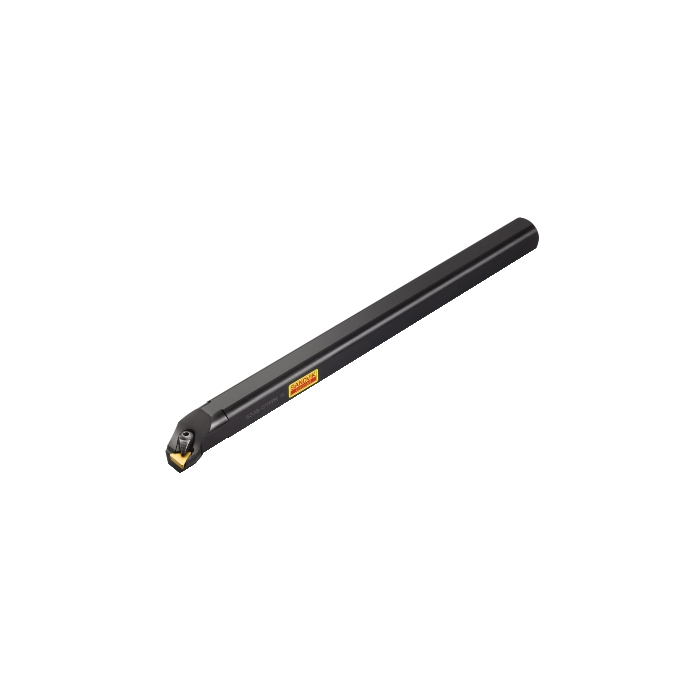

Sandvik Coromant S25T-CTFPR 16 T-Max™ S boring bar for turning
R 3 052,10
inc. vat
In stock
SKU
5752513
T-Max® S boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® S boring bar for turning
| DCON - Connection Diameter | 25mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 300mm |
| BD - Body Diameter | 25mm |
| TQ - Torque | 5Nm |
| WT - Weight Of Item | 1.06kg |
| OAL - Overall Length | 300mm |
| OHX - Maximum Overhang | 100mm |
| LSC - Clamping Length | 251mm |
| KAPR - Tool Cutting Edge Angle | 91deg |
| RMPX - Maximum Ramping Angle | 0deg |
| DMIN - Minimum Bore Diameter | 32mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| OHN - Minimum Overhang | 49mm |
| WF - Functional Width | 17mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | 6deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 0.79375mm |
| Insert Thickness | 3.175mm |
| H - Shank Height | 23mm |
| ORDCODE | S25T-CTFPR 16 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLF3_G2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-07 02:10:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_TP1603_2 |
| Hand | R |
| MIID - Master Insert Identification | TPUN 16 03 08 |
| SC - Insert Shape Code | T |
| SSC - Insert Seat Size Code | 16 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
