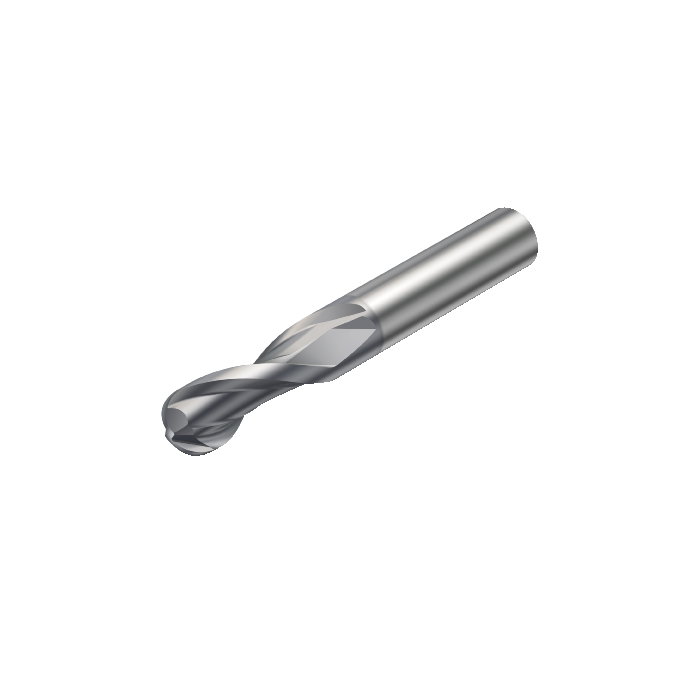

Sandvik Coromant 1B232-1588-XA 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
Next
Sandvik Coromant 1B240-0794-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling
Previous
![Sandvik Coromant 1B232-1588-XA 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6814418ca/sandvik-coromant-1b232-1588-xa-1620-coromilltm-plura-solid-carbide-ball-nose-end-mill-for-profiling.jpg)
![Sandvik Coromant 1B240-0794-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66848b0fb/sandvik-coromant-1b240-0794-xa-1630-coromilltm-plura-solid-carbide-ball-nose-end-mill-for-profiling.jpg)
R 4 863,35
inc. vat
In stock
SKU
6624522
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 18mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 92mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.297kg |
OAL - Overall Length | 92mm |
OHX - Maximum Overhang | 44mm |
RMPX - Maximum Ramping Angle | 15deg |
RE - Corner Radius | 9mm |
LU - Usable Length | 26mm |
APMX - Depth Of Cut Maximum | 26mm |
DC - Cutting Diameter | 18mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 1.444444444444 |
ORDCODE | 1B230-1800-XA 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1800_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-13 12:07:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
