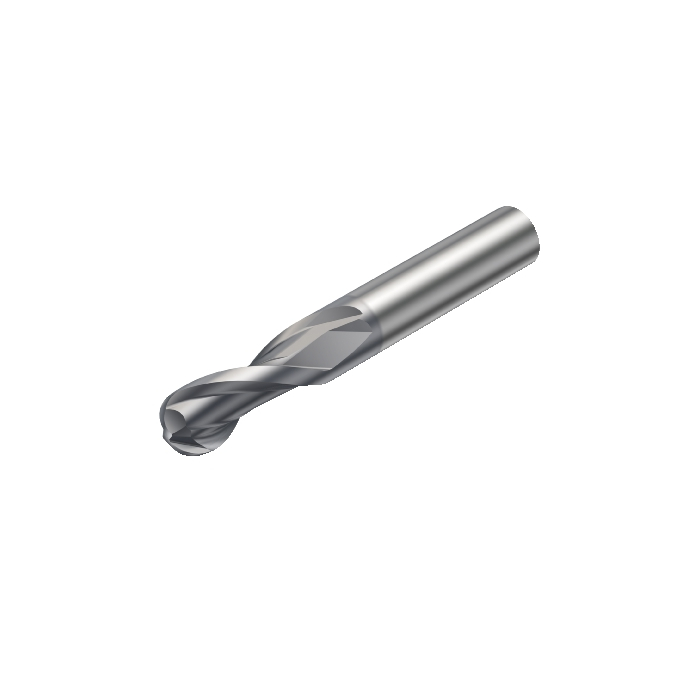

Sandvik Coromant 1B232-0159-XA 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant 1B232-0159-XA 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 6334841
Price: 959.10 ZAR
Availability: InStock

Be the first to review this product

R 959,10 inc. vat

In stock

SKU

6334841

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50.8mm
LB - Body Length	10.5mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.03kg
OAL - Overall Length	50.8mm
OHX - Maximum Overhang	14.8mm
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	0.794mm
LU - Usable Length	3.175mm
APMX - Depth Of Cut Maximum	3.175mm
DC - Cutting Diameter	1.588mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1.999370277078
DCTOLL - Lower Cutting Diameter Tolerance	-0.025mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1B232-0159-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-09-13 12:07:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
