Sandvik Coromant 1B240-0238-XA 1630 CoroMill™ Plura solid carbide ball nose end mill for Profiling
Next
Sandvik Coromant 1B232-0794-XA 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
Previous
R 1 152,30
inc. vat
In stock
SKU
6334846

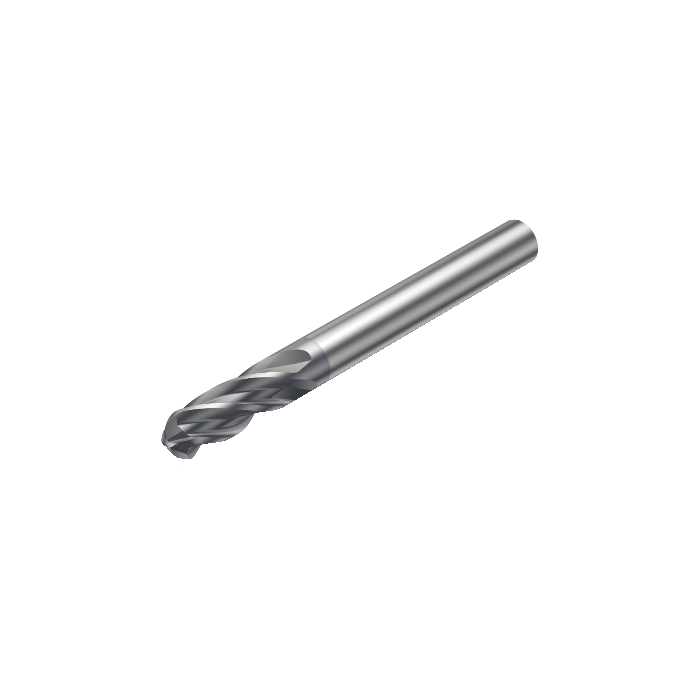

CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 6.35mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 76.2mm |
LB - Body Length | 10.5mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.044kg |
OAL - Overall Length | 76.2mm |
OHX - Maximum Overhang | 40.2mm |
RMPX - Maximum Ramping Angle | 15deg |
RE - Corner Radius | 0.794mm |
LU - Usable Length | 3.175mm |
APMX - Depth Of Cut Maximum | 3.175mm |
DC - Cutting Diameter | 1.588mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 1.999370277078 |
DCTOLL - Lower Cutting Diameter Tolerance | -0.025mm |
DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
ORDCODE | 1B240-0159-XA 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-13 12:07:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CPDF - Cutting Pitch Differential | False |
