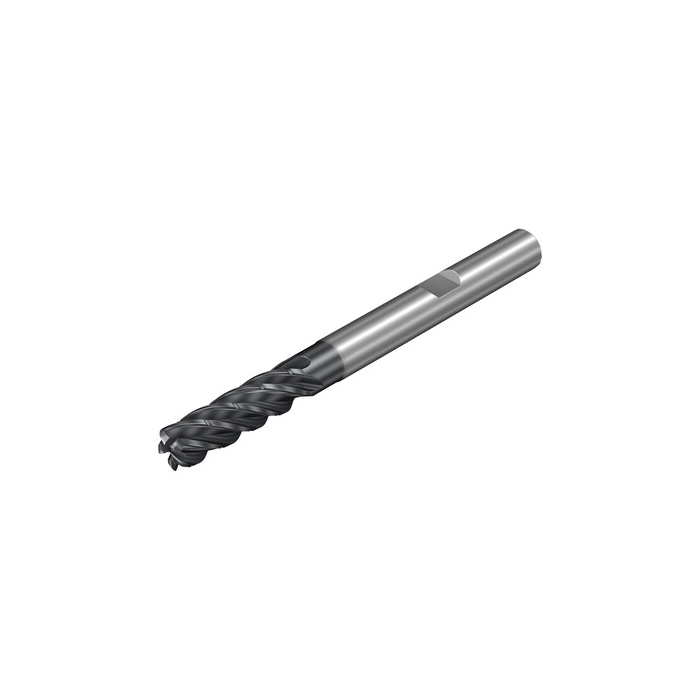

Sandvik Coromant 1K365-2000-100-XD 1730 CoroMill™ Dura solid carbide end mill for General Machining

Name: Sandvik Coromant 1K365-2000-100-XD 1730 CoroMill™ Dura solid carbide end mill for General Machining
SKU: 8213607
Price: 8439.85 ZAR
Availability: InStock

Be the first to review this product

R 8 439,85 inc. vat

In stock

SKU

8213607

CoroMill® Dura solid carbide end mill for General Machining

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Dura solid carbide end mill for General Machining

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	142mm
BD - Body Diameter	19.2mm
LB - Body Length	90.69mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.508kg
OAL - Overall Length	142mm
OHX - Maximum Overhang	92mm
LSC - Clamping Length	50mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	4deg
RE - Corner Radius	1mm
H - Shank Height	18.2mm
LU - Usable Length	90mm
MHD - Mounting Hole Distance	25mm
APMX - Depth Of Cut Maximum	70mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	18mm
DN - Neck Diameter	19.2mm
FHA - Flute Helix Angle	36.5deg
GAMF - Radial Rake Angle	10deg
GAMP - Axial Rake Angle	5deg
ULDR - Usable Length Diameter Ratio	4.5
ORDCODE	1K365-2000-100-XD 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-08-18 17:26:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	ISO3338-2
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
