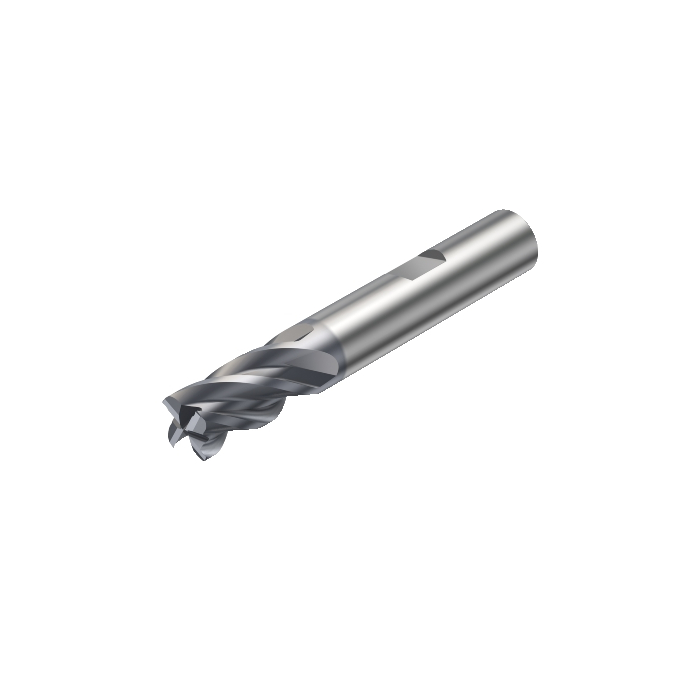

Sandvik Coromant 1P222-1200-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
R 2 136,70
inc. vat
In stock
SKU
6259619
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
| DCON - Connection Diameter | 12mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 73mm |
| RPMX - Rotational Speed Maximum | 590001/min |
| WT - Weight Of Item | 0.119kg |
| OAL - Overall Length | 73mm |
| OHX - Maximum Overhang | 28mm |
| LSC - Clamping Length | 45mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 5deg |
| H - Shank Height | 10.4mm |
| LU - Usable Length | 16.5mm |
| MHD - Mounting Hole Distance | 22.5mm |
| APMX - Depth Of Cut Maximum | 16.5mm |
| KCH - Corner Chamfer | 45deg |
| CHW - Corner Chamfer Width | 0.2mm |
| DC - Cutting Diameter | 12mm |
| DCF - Cutting Diameter Face Contact | 11.6mm |
| FHA - Flute Helix Angle | 35deg |
| GAMF - Radial Rake Angle | 9deg |
| GAMP - Axial Rake Angle | 5.5deg |
| ULDR - Usable Length Diameter Ratio | 1.375 |
| DCTOLL - Lower Cutting Diameter Tolerance | -0.07mm |
| DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
| ORDCODE | 1P222-1200-XB 1630 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G1200_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 09:33:00.000 |
| STDLET - Standard Letter | WE |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1630 |
| COATING | PVD AlCrN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | DIN 6527 K |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | True |
| CPDF - Cutting Pitch Differential | False |
