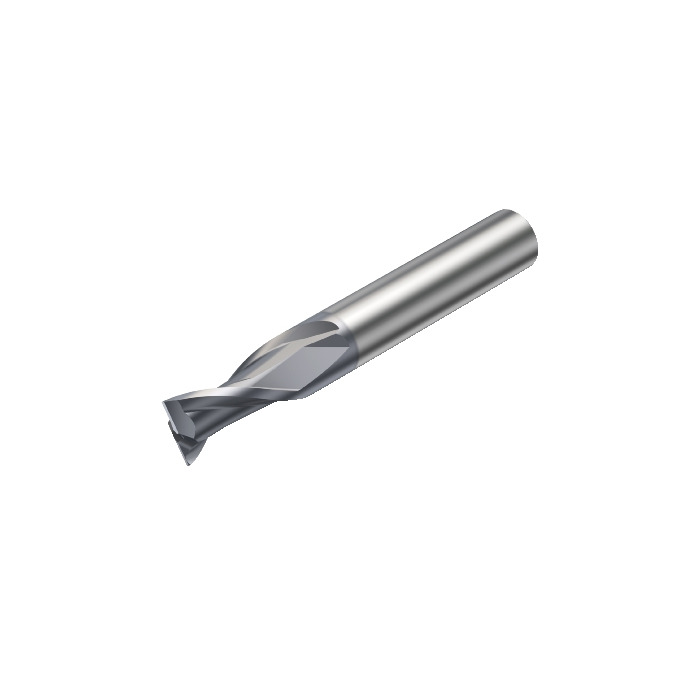

Sandvik Coromant 1P230-1270-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

R 2 194,20 inc. vat
In stock
SKU
7045720
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
More Information
DCON - Connection Diameter 12.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 76.2mm
RPMX - Rotational Speed Maximum 671001/min
WT - Weight Of Item 0.125kg
OAL - Overall Length 76.2mm
OHX - Maximum Overhang 30.9mm
LSC - Clamping Length 45.3mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 9deg
LU - Usable Length 23.81mm
APMX - Depth Of Cut Maximum 23.81mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.203mm
DC - Cutting Diameter 12.7mm
DCF - Cutting Diameter Face Contact 12.294mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 9deg
GAMP - Axial Rake Angle 5.5deg
ULDR - Usable Length Diameter Ratio 1.874803149606
DCTOLL - Lower Cutting Diameter Tolerance -0.055mm
DCTOLU - Upper Cutting Diameter Tolerance -0.035mm
ORDCODE 1P230-1270-XA 1630
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R5000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:08:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1630
COATING PVD AlCrN
SUBSTRATE HC
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
