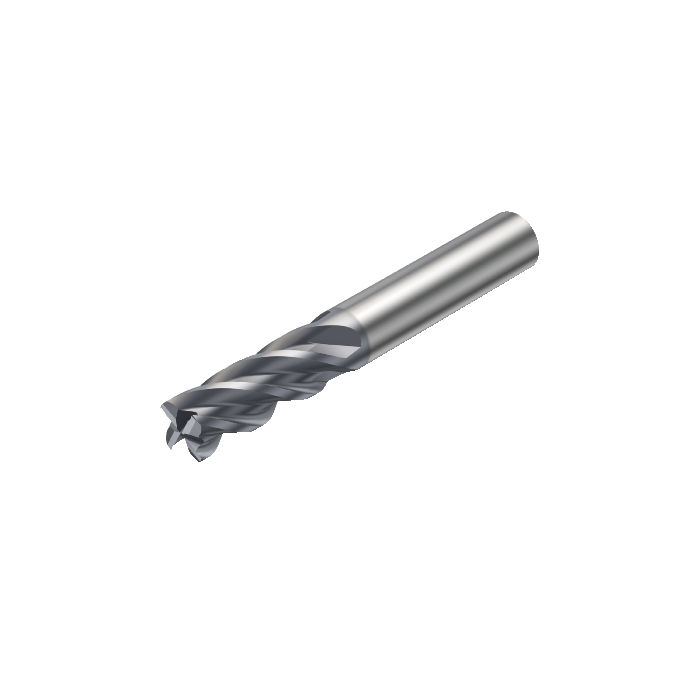

Sandvik Coromant 1P240-0450-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
Next
Sandvik Coromant 1P240-0650-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
Previous
![Sandvik Coromant 1P240-0450-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/663649c69/sandvik-coromant-1p240-0450-xa-1630-coromilltm-plura-solid-carbide-end-mill-for-heavy-roughing.jpg)
![Sandvik Coromant 1P240-0650-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66362712c/sandvik-coromant-1p240-0650-xa-1630-coromilltm-plura-solid-carbide-end-mill-for-heavy-roughing.jpg)
R 4 335,50
inc. vat
In stock
SKU
6259729
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
DCON - Connection Diameter | 18mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 92mm |
RPMX - Rotational Speed Maximum | 187001/min |
WT - Weight Of Item | 307.3g |
OAL - Overall Length | 92mm |
OHX - Maximum Overhang | 44mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
LU - Usable Length | 32.5mm |
APMX - Depth Of Cut Maximum | 32.5mm |
KCH - Corner Chamfer | 45deg |
CHW - Corner Chamfer Width | 0.2mm |
DC - Cutting Diameter | 18mm |
DCF - Cutting Diameter Face Contact | 17.6mm |
FHA - Flute Helix Angle | 35deg |
GAMF - Radial Rake Angle | 9deg |
GAMP - Axial Rake Angle | 5.5deg |
ULDR - Usable Length Diameter Ratio | 1.805555555556 |
DCTOLL - Lower Cutting Diameter Tolerance | -0.07mm |
DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
ORDCODE | 1P240-1800-XA 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1800_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:49:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD AlCrN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6527 L |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
