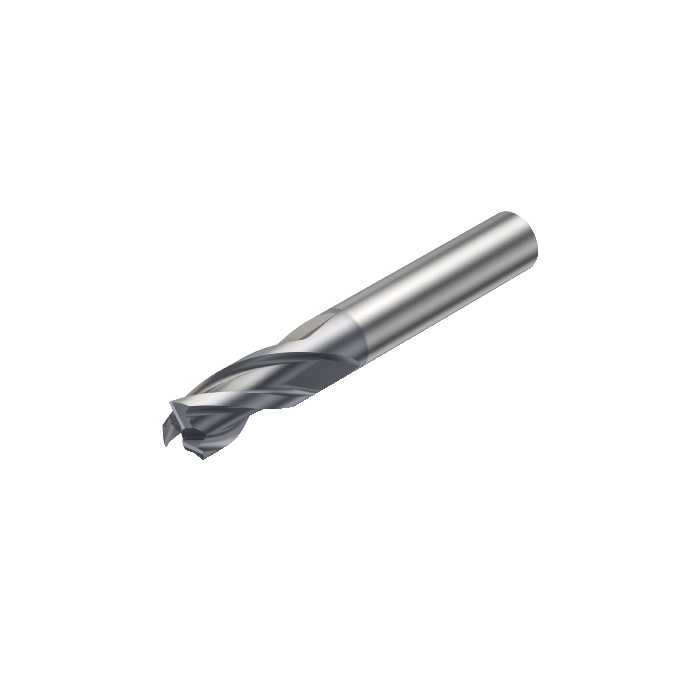

Sandvik Coromant 1P251-0300-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P251-0300-XA 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 6259793
Price: 869.40 ZAR
Availability: InStock

Be the first to review this product

R 869,40 inc. vat

In stock

SKU

6259793

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	57mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	27.4g
OAL - Overall Length	57mm
OHX - Maximum Overhang	21mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
LU - Usable Length	12.5mm
APMX - Depth Of Cut Maximum	12.5mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.08mm
DC - Cutting Diameter	3mm
DCF - Cutting Diameter Face Contact	2.84mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	9deg
GAMP - Axial Rake Angle	5.5deg
ULDR - Usable Length Diameter Ratio	4.1666666666667
DCTOLL - Lower Cutting Diameter Tolerance	-0.047mm
DCTOLU - Upper Cutting Diameter Tolerance	-0.035mm
ORDCODE	1P251-0300-XA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:34:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
