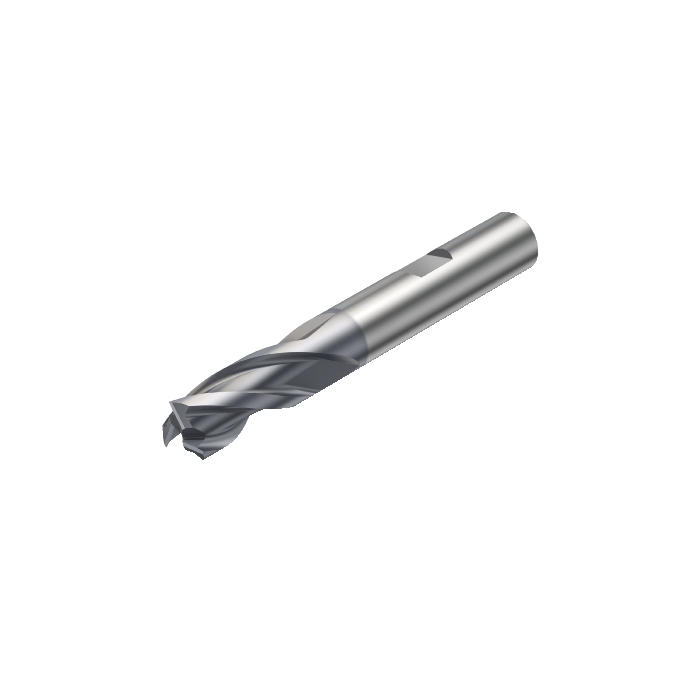

Sandvik Coromant 1P251-1200-XB 1630 CoroMill™ Plura solid carbide end mill for Heavy roughing

R 2 360,95 inc. vat
In stock
SKU
6259805
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
More Information
DCON - Connection Diameter 12mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 83mm
RPMX - Rotational Speed Maximum 509001/min
WT - Weight Of Item 0.127kg
OAL - Overall Length 83mm
OHX - Maximum Overhang 38mm
LSC - Clamping Length 45mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
H - Shank Height 10.4mm
LU - Usable Length 25.5mm
MHD - Mounting Hole Distance 22.5mm
APMX - Depth Of Cut Maximum 25.5mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.2mm
DC - Cutting Diameter 12mm
DCF - Cutting Diameter Face Contact 11.6mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 9deg
GAMP - Axial Rake Angle 5.5deg
ULDR - Usable Length Diameter Ratio 2.125
DCTOLL - Lower Cutting Diameter Tolerance -0.07mm
DCTOLU - Upper Cutting Diameter Tolerance -0.05mm
ORDCODE 1P251-1200-XB 1630
ADINTMS - Adaptive Interface Machine Direction M_CYLW_G1200_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 10:03:00.000
STDLET - Standard Letter WE
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1630
COATING PVD AlCrN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
