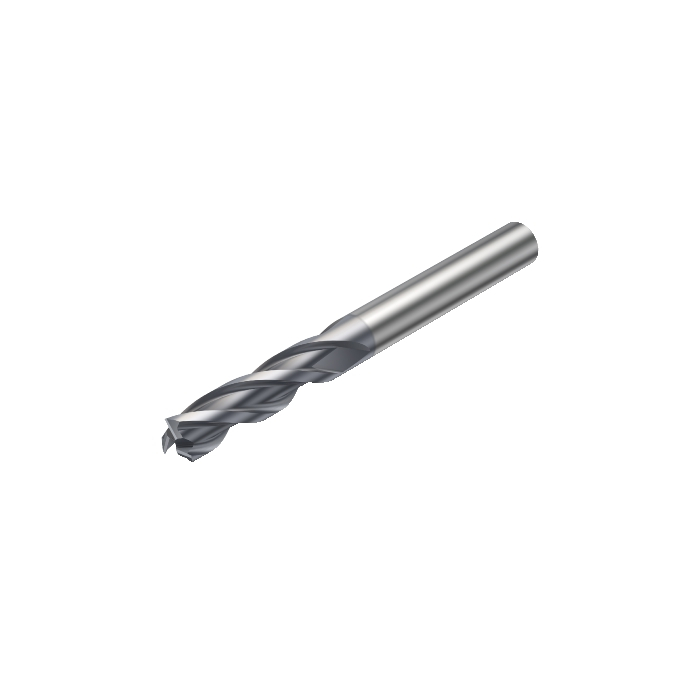

Sandvik Coromant 1P260-0200-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

R 769,35 inc. vat
In stock
SKU
6259818
CoroMill® Plura solid carbide end mill for Heavy roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy roughing
More Information
DCON - Connection Diameter 3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 38mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.013kg
OAL - Overall Length 38mm
OHX - Maximum Overhang 10mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
RE - Corner Radius 0mm
LU - Usable Length 8mm
APMX - Depth Of Cut Maximum 8mm
DC - Cutting Diameter 2mm
DCF - Cutting Diameter Face Contact 2mm
FHA - Flute Helix Angle 30deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 4
DCTOLL - Lower Cutting Diameter Tolerance -0.04mm
DCTOLU - Upper Cutting Diameter Tolerance 0mm
ORDCODE 1P260-0200-XA 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:34:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 3
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
