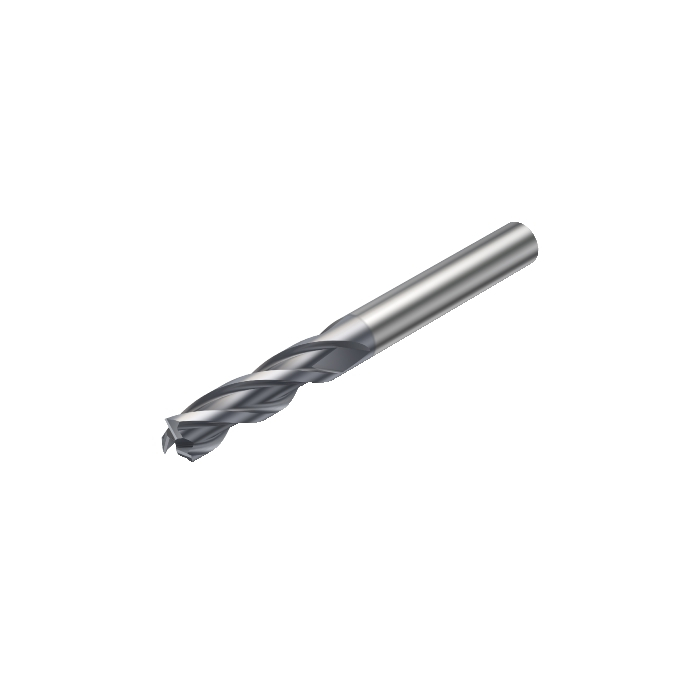

Sandvik Coromant 1P260-0300-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P260-0300-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 6259820
Price: 769.35 ZAR
Availability: InStock

Be the first to review this product

R 769,35 inc. vat

In stock

SKU

6259820

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	3mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	38mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.013kg
OAL - Overall Length	38mm
OHX - Maximum Overhang	10mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0mm
LU - Usable Length	12mm
APMX - Depth Of Cut Maximum	12mm
DC - Cutting Diameter	3mm
DCF - Cutting Diameter Face Contact	3mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	4
DCTOLL - Lower Cutting Diameter Tolerance	-0.04mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P260-0300-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:34:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
