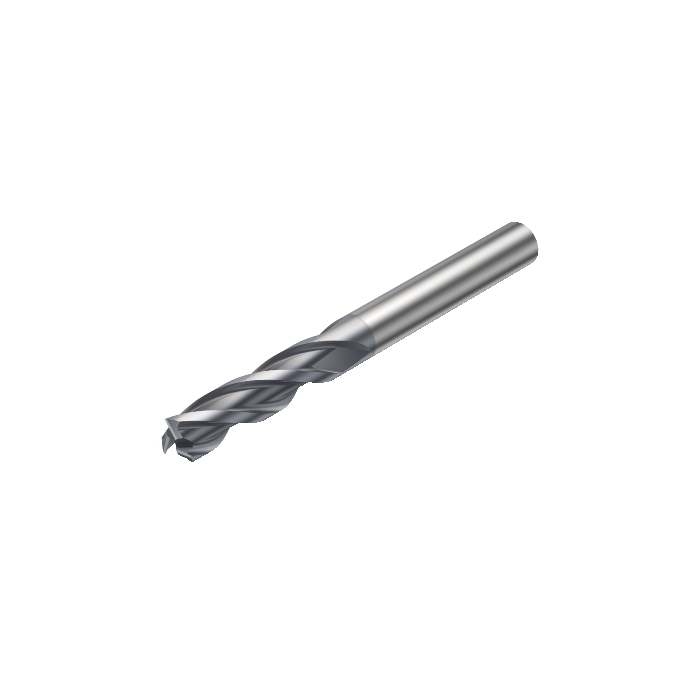

Sandvik Coromant 1P260-0635-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P260-0635-XA 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 7045734
Price: 932.65 ZAR
Availability: InStock

Be the first to review this product

R 932,65 inc. vat

In stock

SKU

7045734

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.027kg
OAL - Overall Length	63.5mm
OHX - Maximum Overhang	27.5mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0mm
LU - Usable Length	23.81mm
APMX - Depth Of Cut Maximum	23.81mm
DC - Cutting Diameter	6.35mm
DCF - Cutting Diameter Face Contact	6.35mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3.749606299213
DCTOLL - Lower Cutting Diameter Tolerance	-0.058mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P260-0635-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:15:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
