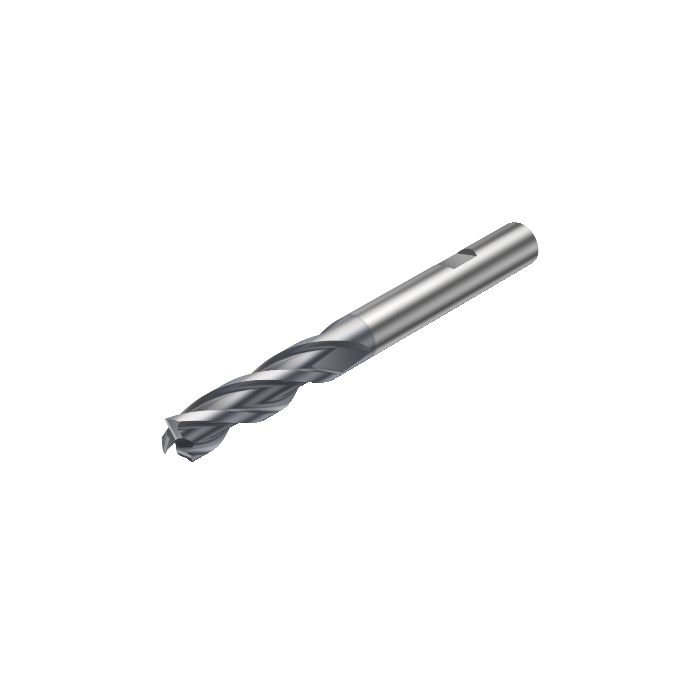

Sandvik Coromant 1P260-0800-XB 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing

Name: Sandvik Coromant 1P260-0800-XB 1620 CoroMill™ Plura solid carbide end mill for Heavy roughing
SKU: 6259833
Price: 1383.45 ZAR
Availability: InStock

Be the first to review this product

R 1 383,45 inc. vat

In stock

SKU

6259833

CoroMill® Plura solid carbide end mill for Heavy roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy roughing

More Information

More Information
DCON - Connection Diameter	8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	58.5g
OAL - Overall Length	80mm
OHX - Maximum Overhang	44mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	0mm
H - Shank Height	6.6mm
LU - Usable Length	28mm
MHD - Mounting Hole Distance	18mm
APMX - Depth Of Cut Maximum	28mm
DC - Cutting Diameter	8mm
DCF - Cutting Diameter Face Contact	8mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3.5
DCTOLL - Lower Cutting Diameter Tolerance	-0.058mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P260-0800-XB 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_F8000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:03:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	3
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
