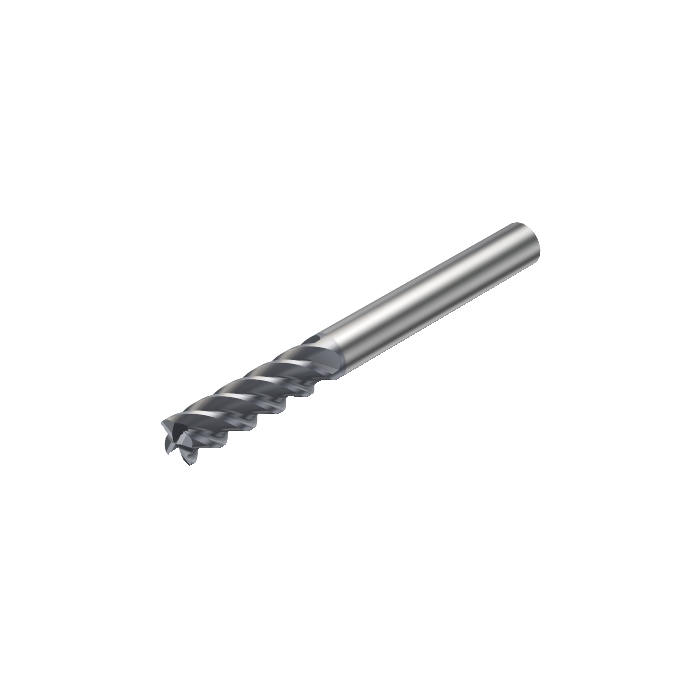

Sandvik Coromant 1P360-1000-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing

Name: Sandvik Coromant 1P360-1000-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing
SKU: 6259903
Price: 2181.55 ZAR
Availability: InStock

Be the first to review this product

R 2 181,55 inc. vat

In stock

SKU

6259903

CoroMill® Plura solid carbide end mill for Medium roughing

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Medium roughing

More Information

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	110g
OAL - Overall Length	100mm
OHX - Maximum Overhang	60mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	4deg
LU - Usable Length	32mm
APMX - Depth Of Cut Maximum	32mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.1mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	9.8mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3.2
DCTOLL - Lower Cutting Diameter Tolerance	-0.058mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	1P360-1000-XA 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:35:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
