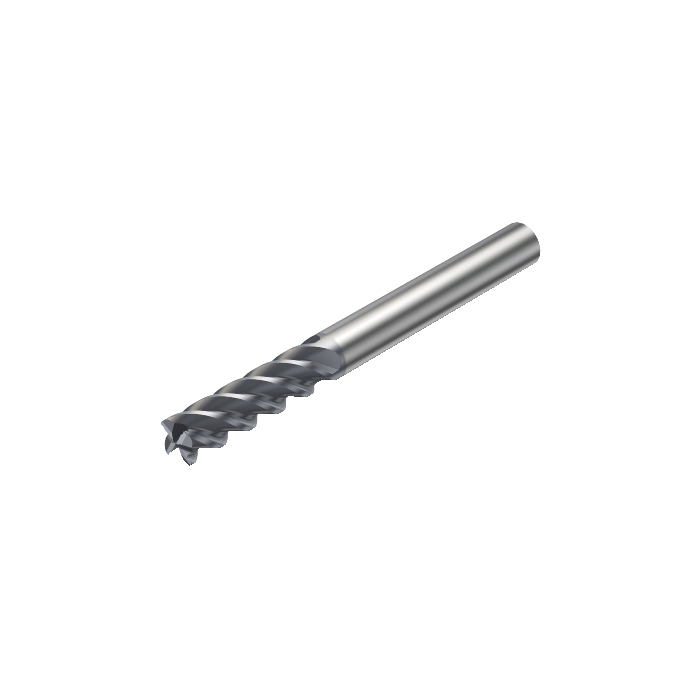

Sandvik Coromant 1P360-1588-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing
R 4 302,15
inc. vat
In stock
SKU
7045767
CoroMill® Plura solid carbide end mill for Medium roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Medium roughing
| DCON - Connection Diameter | 15.875mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 127mm |
| RPMX - Rotational Speed Maximum | 120001/min |
| WT - Weight Of Item | 0.328kg |
| OAL - Overall Length | 127mm |
| OHX - Maximum Overhang | 78.6mm |
| LSC - Clamping Length | 48.4mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 4deg |
| LU - Usable Length | 50.8mm |
| APMX - Depth Of Cut Maximum | 50.8mm |
| KCH - Corner Chamfer | 45deg |
| CHW - Corner Chamfer Width | 0.152mm |
| DC - Cutting Diameter | 15.875mm |
| DCF - Cutting Diameter Face Contact | 15.571mm |
| FHA - Flute Helix Angle | 45deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 13.5deg |
| ULDR - Usable Length Diameter Ratio | 3.2 |
| DCTOLL - Lower Cutting Diameter Tolerance | -0.07mm |
| DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
| ORDCODE | 1P360-1588-XA 1620 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-04-22 10:08:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1620 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| ZEFP - Peripheral Effective Cutting Edge Count | 5 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CCC - Center Cutting Capability | True |
| CPDF - Cutting Pitch Differential | False |
