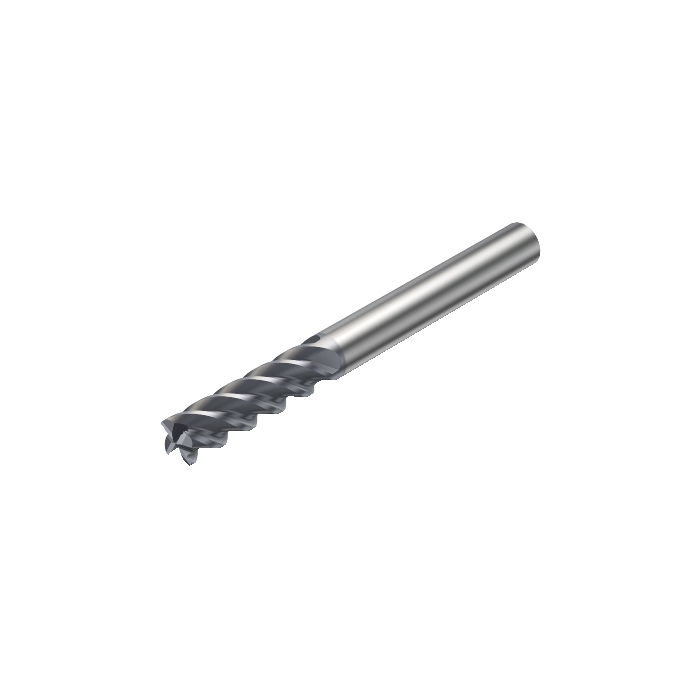

Sandvik Coromant 1P360-2000-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing Previous Sandvik Coromant 1P360-2000-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing

Sandvik Coromant 1P370-2000-XA 1620 CoroMill™ Plura solid carbide end mill for Medium roughing

R 9 577,20 inc. vat
In stock
SKU
6259909
CoroMill® Plura solid carbide end mill for Medium roughing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Medium roughing
More Information
DCON - Connection Diameter 20mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 145mm
RPMX - Rotational Speed Maximum 395441/min
WT - Weight Of Item 0.561kg
OAL - Overall Length 145mm
OHX - Maximum Overhang 95mm
LSC - Clamping Length 50mm
KAPR - Tool Cutting Edge Angle 90deg
LU - Usable Length 75mm
APMX - Depth Of Cut Maximum 75mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.15mm
DC - Cutting Diameter 20mm
DCF - Cutting Diameter Face Contact 19.7mm
FHA - Flute Helix Angle 45deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 3.75
ORDCODE 1P370-2000-XA 1620
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G2000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:35:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1620
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 6
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
