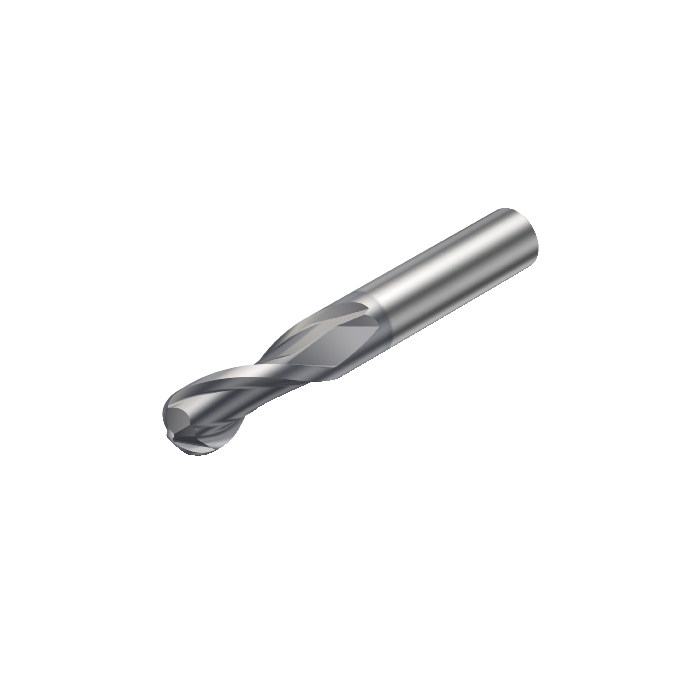

Sandvik Coromant 2B230-0150-NA N20C CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant 2B230-0150-NA N20C CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 6259963
Price: 2440.30 ZAR
Availability: InStock

Be the first to review this product

R 2 440,30 inc. vat

In stock

SKU

6259963

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	3mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	38mm
LB - Body Length	7mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.013kg
OAL - Overall Length	38mm
OHX - Maximum Overhang	10mm
RMPX - Maximum Ramping Angle	15deg
RE - Corner Radius	0.75mm
LU - Usable Length	3mm
APMX - Depth Of Cut Maximum	3mm
DC - Cutting Diameter	1.5mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	2
ORDCODE	2B230-0150-NA N20C
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 05:15:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h8
Grade	N20C
COATING	CVD Sp3
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
