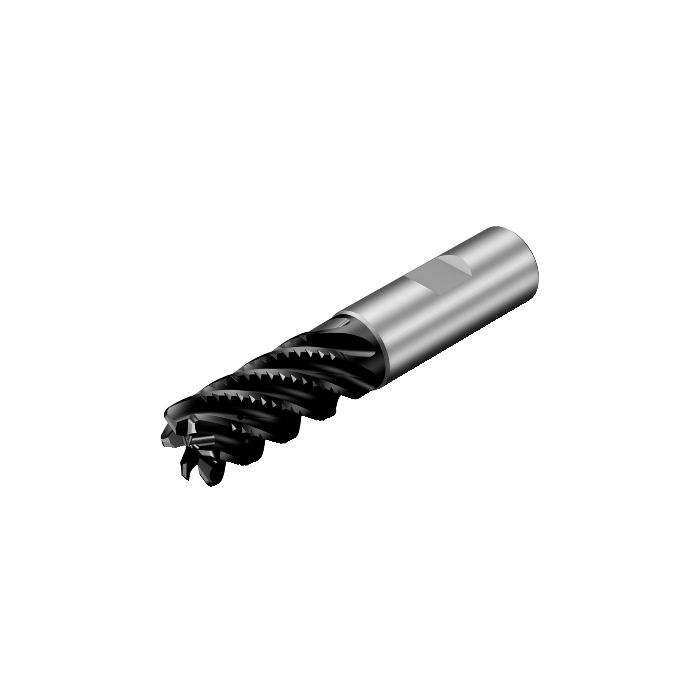

Sandvik Coromant 2F340-2000-300CSD 1745 CoroMill™ Plura solid carbide end mill for High Feed Side milling
R 11 953,10
inc. vat
Out of stock
SKU
7419230
CoroMill® Plura solid carbide end mill for High Feed Side milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for High Feed Side milling
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DCON - Connection Diameter | 20mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 104mm |
| BD - Body Diameter | 19mm |
| LB - Body Length | 52.87mm |
| BHTA - Body Half Taper Angle | 30deg |
| RPMX - Rotational Speed Maximum | 132001/min |
| WT - Weight Of Item | 388.3g |
| OAL - Overall Length | 104mm |
| OHX - Maximum Overhang | 54mm |
| LSC - Clamping Length | 50mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RE - Corner Radius | 3mm |
| H - Shank Height | 18.2mm |
| LU - Usable Length | 52mm |
| MHD - Mounting Hole Distance | 25mm |
| APMX - Depth Of Cut Maximum | 42mm |
| DC - Cutting Diameter | 20mm |
| DCF - Cutting Diameter Face Contact | 14mm |
| DN - Neck Diameter | 19mm |
| FHA - Flute Helix Angle | 42deg |
| GAMF - Radial Rake Angle | 5deg |
| GAMP - Axial Rake Angle | 5deg |
| ULDR - Usable Length Diameter Ratio | 2.6 |
| DCTOLL - Lower Cutting Diameter Tolerance | -0.084mm |
| DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
| ORDCODE | 2F340-2000-300CSD 1745 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_G2000_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-16 11:04:00.000 |
| STDLET - Standard Letter | WE |
| STDNO - Standard Number | ISO3338-2 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1745 |
| COATING | PVD TiAlSiN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | False |
| CPDF - Cutting Pitch Differential | True |
