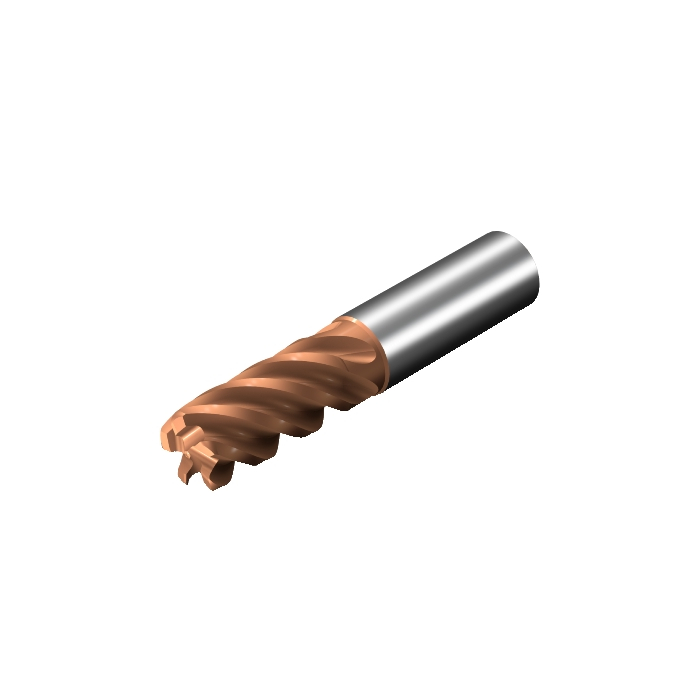

Sandvik Coromant 2F341-1000-050-SC 1710 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2F341-1000-050-SC 1710 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 7419254
Price: 2645.00 ZAR
Availability: InStock

Be the first to review this product

R 2 645,00 inc. vat

In stock

SKU

7419254

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	72mm
BD - Body Diameter	9.5mm
LB - Body Length	30.43mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	75.7g
OAL - Overall Length	72mm
OHX - Maximum Overhang	32mm
LSC - Clamping Length	40mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	0.5mm
LU - Usable Length	30mm
APMX - Depth Of Cut Maximum	22mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	9mm
DN - Neck Diameter	9.5mm
FHA - Flute Helix Angle	42deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	3
DCTOLL - Lower Cutting Diameter Tolerance	-0.058mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	2F341-1000-050-SC 1710
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:28:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1710
COATING	PVD TiAlN+TiSiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
