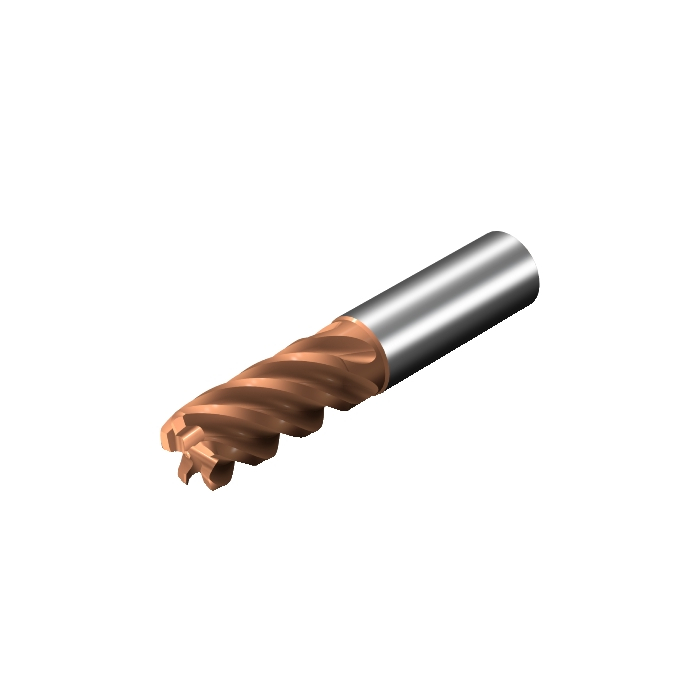

Sandvik Coromant 2F341-1000-200-SC 1710 CoroMill™ Plura solid carbide end mill for High Feed Side milling
R 2 645,00
inc. vat
In stock
SKU
7419256
CoroMill® Plura solid carbide end mill for High Feed Side milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for High Feed Side milling
DCON - Connection Diameter | 10mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 72mm |
BD - Body Diameter | 9.5mm |
LB - Body Length | 30.43mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 75.7g |
OAL - Overall Length | 72mm |
OHX - Maximum Overhang | 32mm |
LSC - Clamping Length | 40mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RE - Corner Radius | 2mm |
LU - Usable Length | 30mm |
APMX - Depth Of Cut Maximum | 22mm |
DC - Cutting Diameter | 10mm |
DCF - Cutting Diameter Face Contact | 6mm |
DN - Neck Diameter | 9.5mm |
FHA - Flute Helix Angle | 42deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 10.5deg |
ULDR - Usable Length Diameter Ratio | 3 |
DCTOLL - Lower Cutting Diameter Tolerance | -0.058mm |
DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
ORDCODE | 2F341-1000-200-SC 1710 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-09-08 07:58:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1710 |
COATING | PVD TiAlN+TiSiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | True |
