Sandvik Coromant 2F341-2500-400-SC 1710 CoroMill™ Plura solid carbide end mill for High Feed Side milling
R 10 415,55
inc. vat
In stock
SKU
7419268

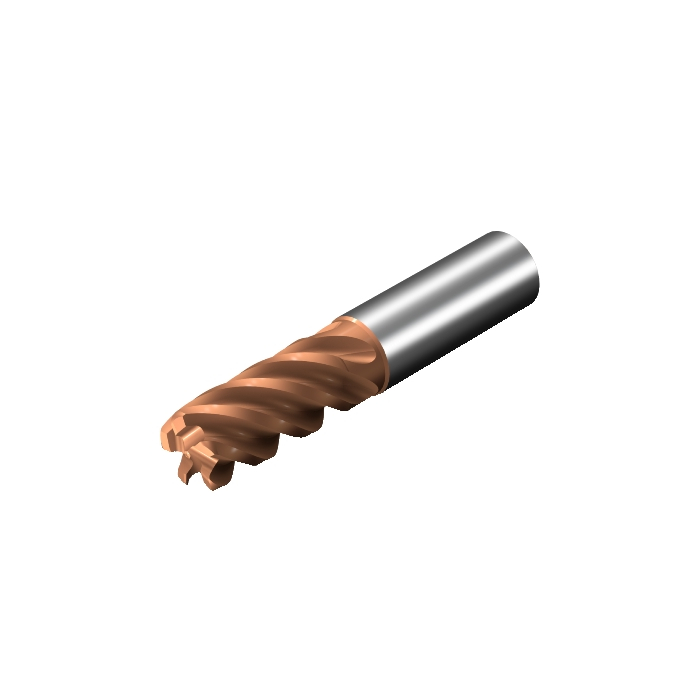

CoroMill® Plura solid carbide end mill for High Feed Side milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for High Feed Side milling
| DCON - Connection Diameter | 25mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 121mm |
| BD - Body Diameter | 23.75mm |
| LB - Body Length | 64.08mm |
| BHTA - Body Half Taper Angle | 30deg |
| RPMX - Rotational Speed Maximum | 82001/min |
| WT - Weight Of Item | 752g |
| OAL - Overall Length | 121mm |
| OHX - Maximum Overhang | 65mm |
| LSC - Clamping Length | 56mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RE - Corner Radius | 4mm |
| LU - Usable Length | 63mm |
| APMX - Depth Of Cut Maximum | 52mm |
| DC - Cutting Diameter | 25mm |
| DCF - Cutting Diameter Face Contact | 17mm |
| DN - Neck Diameter | 23.75mm |
| FHA - Flute Helix Angle | 42deg |
| GAMF - Radial Rake Angle | 10.5deg |
| GAMP - Axial Rake Angle | 10.5deg |
| ULDR - Usable Length Diameter Ratio | 2.52 |
| DCTOLL - Lower Cutting Diameter Tolerance | -0.084mm |
| DCTOLU - Upper Cutting Diameter Tolerance | 0mm |
| ORDCODE | 2F341-2500-400-SC 1710 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-06-16 12:04:00.000 |
| STDLET - Standard Letter | HA |
| STDNO - Standard Number | DIN6535 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1710 |
| COATING | PVD TiAlN+TiSiN |
| SUBSTRATE | HC |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 5 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CCC - Center Cutting Capability | False |
| CPDF - Cutting Pitch Differential | True |
