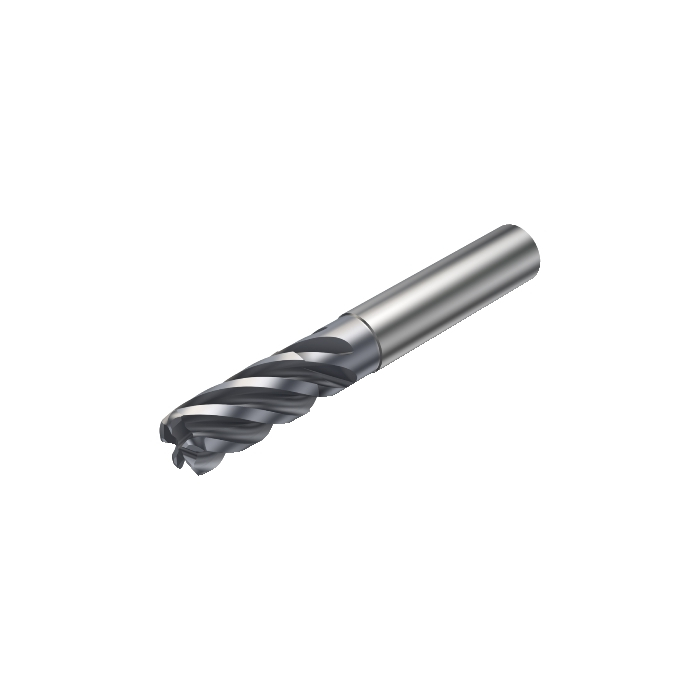

Sandvik Coromant 2F342-1588-152-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2F342-1588-152-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732598
Price: 5740.80 ZAR
Availability: InStock

Be the first to review this product

R 5 740,80 inc. vat

In stock

SKU

6732598

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
DCON - Connection Diameter	15.875mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	88.9mm
BD - Body Diameter	15.09mm
LB - Body Length	41.96mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	221001/min
WT - Weight Of Item	0.24kg
OAL - Overall Length	88.9mm
OHX - Maximum Overhang	40.5mm
LSC - Clamping Length	48.4mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	7deg
RE - Corner Radius	1.524mm
LU - Usable Length	41.28mm
APMX - Depth Of Cut Maximum	33.4mm
DC - Cutting Diameter	15.875mm
DCF - Cutting Diameter Face Contact	12.827mm
DN - Neck Diameter	15.09mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.60031496063
ORDCODE	2F342-1588-152-PC 1730
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R6250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:57:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1730
COATING	PVD AlCrN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	5
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
