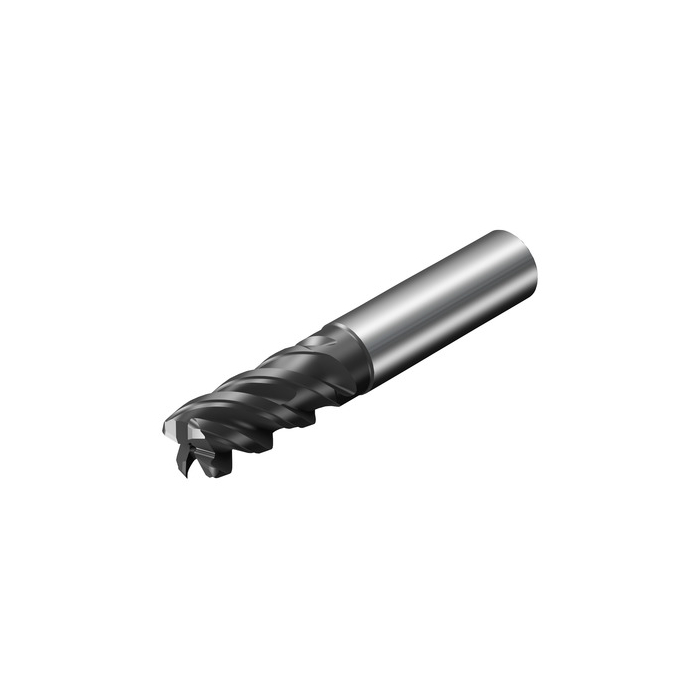

Sandvik Coromant 2F440-2000-400ASD 1725 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant 2F440-2000-400ASD 1725 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 7858286
Price: 11197.55 ZAR
Availability: InStock

Be the first to review this product

R 11 197,55 inc. vat

In stock

SKU

7858286

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
CP - Coolant Pressure	7000000Pa
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	104mm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	0.35kg
OAL - Overall Length	104mm
OHX - Maximum Overhang	54mm
LSC - Clamping Length	50mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	4mm
H - Shank Height	18.2mm
LU - Usable Length	52mm
MHD - Mounting Hole Distance	25mm
APMX - Depth Of Cut Maximum	38mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	12mm
DN - Neck Diameter	19mm
FHA - Flute Helix Angle	48deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.6
ORDCODE	2F440-2000-400ASD 1725
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2022-08-26 11:22:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1725
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
