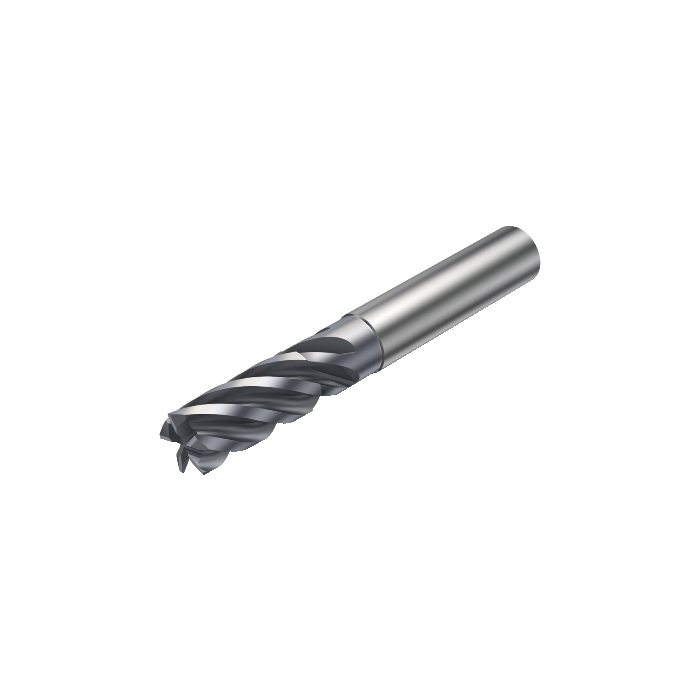

Sandvik Coromant 2S342-1270-305CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling Previous Sandvik Coromant 2S342-1270-305CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Sandvik Coromant 2N342-1270-PC 1730 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

R 3 585,70 inc. vat
In stock
SKU
6732590
CoroMill® Plura solid carbide end mill for Heavy Duty milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Heavy Duty milling
More Information
DCON - Connection Diameter 12.7mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 88.9mm
BD - Body Diameter 12.07mm
LB - Body Length 37.063mm
BHTA - Body Half Taper Angle 30deg
RPMX - Rotational Speed Maximum 304001/min
WT - Weight Of Item 0.148kg
OAL - Overall Length 88.9mm
OHX - Maximum Overhang 43.6mm
LSC - Clamping Length 45.3mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 7deg
LU - Usable Length 36.513mm
APMX - Depth Of Cut Maximum 28.6mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.152mm
DC - Cutting Diameter 12.7mm
DCF - Cutting Diameter Face Contact 12.396mm
DN - Neck Diameter 12.07mm
FHA - Flute Helix Angle 38deg
GAMF - Radial Rake Angle 10.5deg
GAMP - Axial Rake Angle 10.5deg
ULDR - Usable Length Diameter Ratio 2.875039370079
ORDCODE 2N342-1270-PC 1730
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R5000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:57:00.000
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1730
COATING PVD AlCrN
SUBSTRATE HC
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 5
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CCC - Center Cutting Capability False
CPDF - Cutting Pitch Differential True
