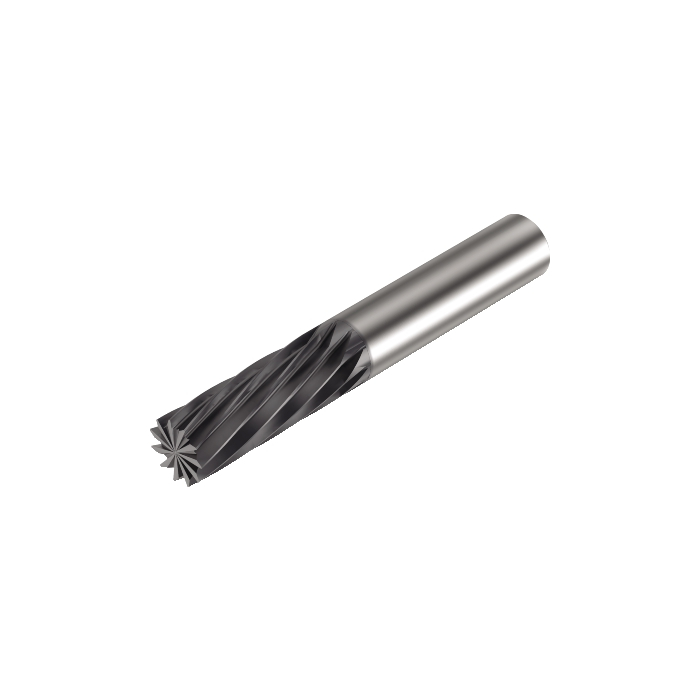

Sandvik Coromant 2P051-1000-OA O10A CoroMill™ Plura solid carbide end mill for Edging applications

Name: Sandvik Coromant 2P051-1000-OA O10A CoroMill™ Plura solid carbide end mill for Edging applications
SKU: 7254433
Price: 4701.20 ZAR
Availability: OutOfStock

Be the first to review this product

R 4 701,20 inc. vat

Out of stock

SKU

7254433

CoroMill® Plura solid carbide end mill for Edging applications

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Edging applications

More Information

More Information
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	80mm
RPMX - Rotational Speed Maximum	240001/min
WT - Weight Of Item	0.071kg
OAL - Overall Length	80mm
OHX - Maximum Overhang	40mm
LSC - Clamping Length	40mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0mm
APMX - Depth Of Cut Maximum	30mm
DC - Cutting Diameter	10mm
DCF - Cutting Diameter Face Contact	10mm
FHA - Flute Helix Angle	-4deg
GAMF - Radial Rake Angle	10deg
GAMP - Axial Rake Angle	-4deg
ORDCODE	2P051-1000-OA O10A
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-07 12:05:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	O10A
COATING	DCT Sp3
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	OA
ZEFP - Peripheral Effective Cutting Edge Count	9
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
