Sandvik Coromant 2P120-0500-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal Previous Sandvik Coromant 2P120-0500-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

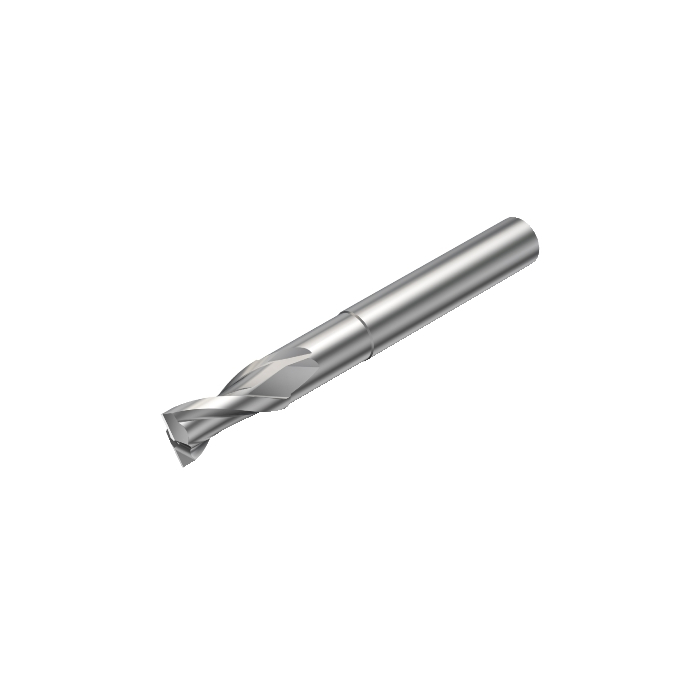

Sandvik Coromant 2P120-0600-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

R 1 039,60 inc. vat
In stock
SKU
6259988
CoroMill® Plura solid carbide end mill for Large chip Removal
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Large chip Removal
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 65mm
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.034kg
OAL - Overall Length 65mm
OHX - Maximum Overhang 29mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 0mm
LU - Usable Length 28mm
APMX - Depth Of Cut Maximum 10mm
DC - Cutting Diameter 6mm
DCF - Cutting Diameter Face Contact 6mm
DN - Neck Diameter 5.7mm
FHA - Flute Helix Angle 25deg
GAMF - Radial Rake Angle 13.5deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 4.666666666667
ORDCODE 2P120-0600-NC H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:36:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h5
Grade H10F
SUBSTRATE HF
CBMD - Chip Breaker Manufacturer's Designation AL
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
