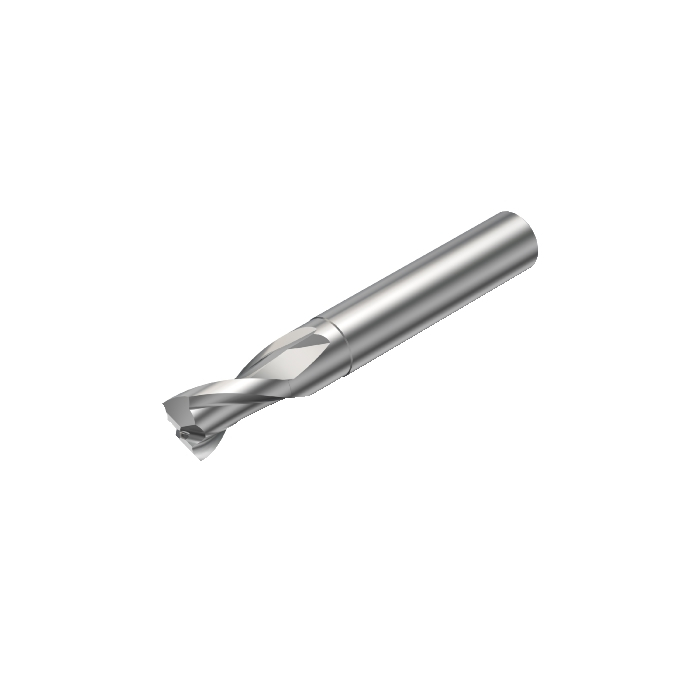

Sandvik Coromant 2P121-1000-NC H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

R 2 233,30 inc. vat
In stock
SKU
6259991
CoroMill® Plura solid carbide end mill for Large chip Removal
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Large chip Removal
More Information
DCON - Connection Diameter 10mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 72mm
BHTA - Body Half Taper Angle 30deg
RPMX - Rotational Speed Maximum 800001/min
WT - Weight Of Item 0.08kg
OAL - Overall Length 72mm
OHX - Maximum Overhang 32mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 15deg
RE - Corner Radius 0.15mm
LU - Usable Length 30mm
APMX - Depth Of Cut Maximum 15mm
DC - Cutting Diameter 10mm
DCF - Cutting Diameter Face Contact 9.7mm
DN - Neck Diameter 9.7mm
FHA - Flute Helix Angle 25deg
GAMF - Radial Rake Angle 17deg
GAMP - Axial Rake Angle 1deg
ULDR - Usable Length Diameter Ratio 3
ORDCODE 2P121-1000-NC H10F
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G1000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:36:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade H10F
SUBSTRATE HF
CBMD - Chip Breaker Manufacturer's Designation AL
BSG - Basic Standard Group COROMANT
ZEFP - Peripheral Effective Cutting Edge Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
