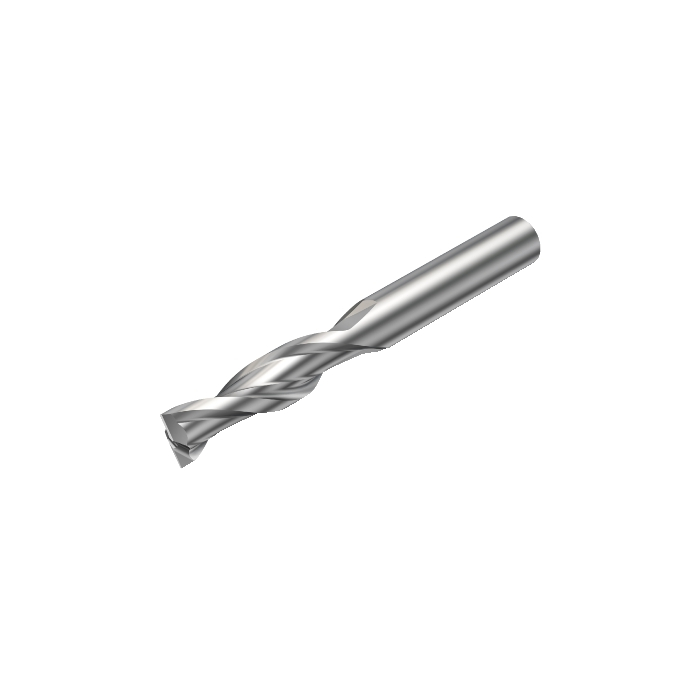

Sandvik Coromant 2P170-2000-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal

Name: Sandvik Coromant 2P170-2000-NA H10F CoroMill™ Plura solid carbide end mill for Large chip Removal
SKU: 6260037
Price: 9068.90 ZAR
Availability: InStock

Be the first to review this product

R 9 068,90 inc. vat

In stock

SKU

6260037

CoroMill® Plura solid carbide end mill for Large chip Removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Large chip Removal

More Information

More Information
DCON - Connection Diameter	20mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	150mm
RPMX - Rotational Speed Maximum	103001/min
WT - Weight Of Item	482.4g
OAL - Overall Length	150mm
OHX - Maximum Overhang	100mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	0.15mm
LU - Usable Length	80mm
APMX - Depth Of Cut Maximum	80mm
DC - Cutting Diameter	20mm
DCF - Cutting Diameter Face Contact	19.7mm
FHA - Flute Helix Angle	25deg
GAMF - Radial Rake Angle	17deg
GAMP - Axial Rake Angle	1deg
ULDR - Usable Length Diameter Ratio	4
ORDCODE	2P170-2000-NA H10F
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-13 13:59:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	H10F
SUBSTRATE	HF
CBMD - Chip Breaker Manufacturer's Designation	AL
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
