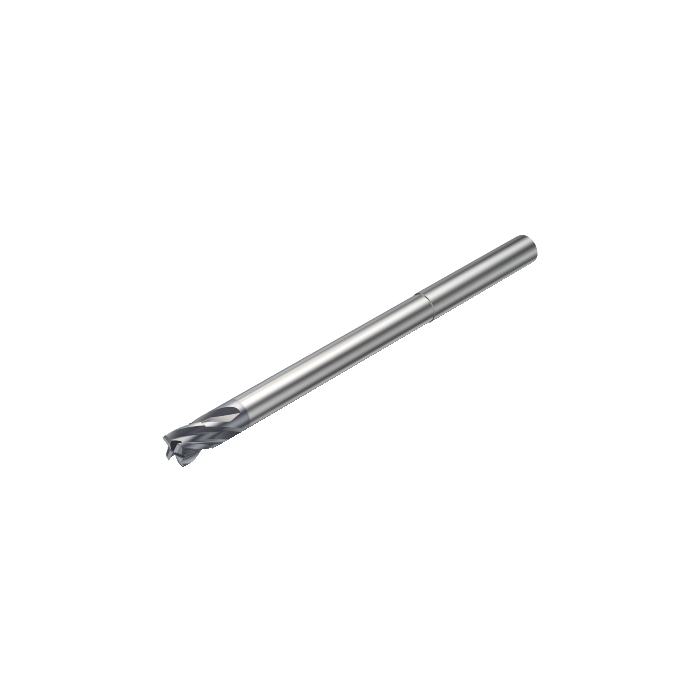

Sandvik Coromant 2P210-0150-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal

Name: Sandvik Coromant 2P210-0150-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal
SKU: 6260046
Price: 3717.95 ZAR
Availability: OutOfStock

Be the first to review this product

R 3 717,95 inc. vat

Out of stock

SKU

6260046

CoroMill® Plura solid carbide end mill for Large chip Removal

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Large chip Removal

More Information

More Information
DCON - Connection Diameter	3mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
BD - Body Diameter	1.72mm
LB - Body Length	19.3mm
BHTA - Body Half Taper Angle	10deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.014kg
OAL - Overall Length	50mm
OHX - Maximum Overhang	22mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	10deg
RE - Corner Radius	0mm
LU - Usable Length	1.5mm
APMX - Depth Of Cut Maximum	1.5mm
DC - Cutting Diameter	1.5mm
DCF - Cutting Diameter Face Contact	1.5mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	1
ORDCODE	2P210-0150-NC N20C
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:51:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	N20C
COATING	CVD Sp3
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
