Sandvik Coromant 2P210-0800-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal
Next
Sandvik Coromant 2P210-0500-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal
Previous
![Sandvik Coromant 2P210-0800-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/666323b14/sandvik-coromant-2p210-0800-nc-n20c-coromilltm-plura-solid-carbide-end-mill-for-large-chip-removal.jpg)
![Sandvik Coromant 2P210-0500-NC N20C CoroMill™ Plura solid carbide end mill for Large chip Removal](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/66630f989/sandvik-coromant-2p210-0500-nc-n20c-coromilltm-plura-solid-carbide-end-mill-for-large-chip-removal.jpg)
R 3 485,65
inc. vat
Out of stock
SKU
6260054

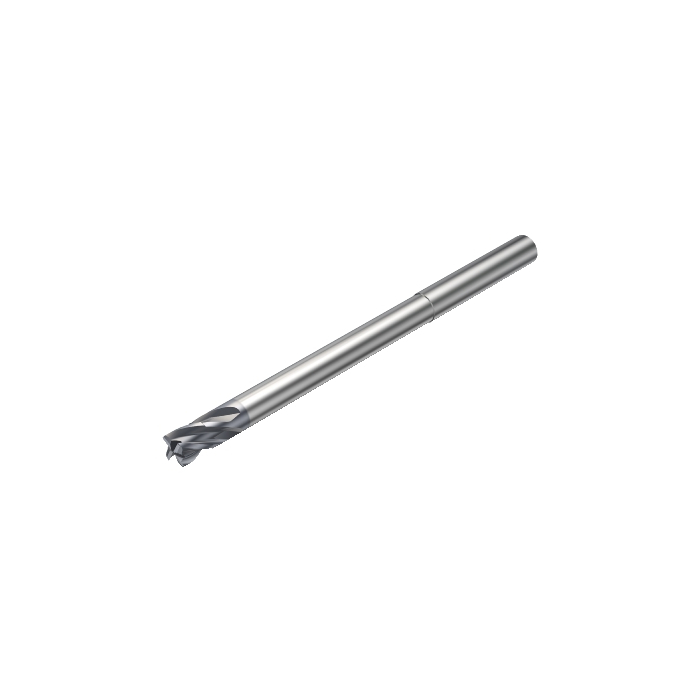

CoroMill® Plura solid carbide end mill for Large chip Removal
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Large chip Removal
DCON - Connection Diameter | 6mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 100mm |
BD - Body Diameter | 5.7mm |
LB - Body Length | 60.15mm |
BHTA - Body Half Taper Angle | 30deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.05kg |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 64mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 10deg |
RE - Corner Radius | 0mm |
LU - Usable Length | 60mm |
APMX - Depth Of Cut Maximum | 6mm |
DC - Cutting Diameter | 6mm |
DCF - Cutting Diameter Face Contact | 6mm |
DN - Neck Diameter | 5.7mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
ULDR - Usable Length Diameter Ratio | 10 |
ORDCODE | 2P210-0600-NC N20C |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:51:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | N20C |
COATING | CVD Sp3 |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
