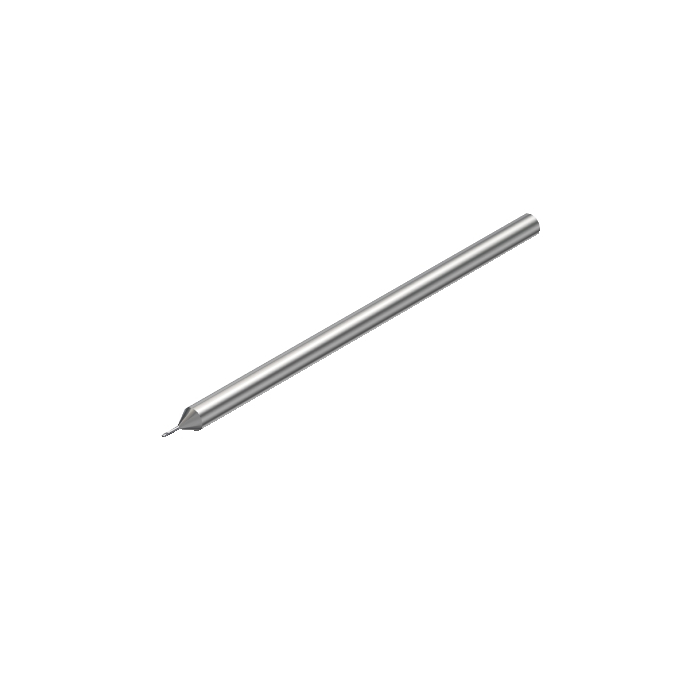

Sandvik Coromant 2P212-0050-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling

Name: Sandvik Coromant 2P212-0050-PC 1620 CoroMill™ Plura solid carbide end mill for micro-milling
SKU: 6260062
Price: 1891.75 ZAR
Availability: InStock

Be the first to review this product

R 1 891,75 inc. vat

In stock

SKU

6260062

CoroMill® Plura solid carbide end mill for micro-milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for micro-milling

More Information

More Information
DCON - Connection Diameter	3mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
BD - Body Diameter	0.46mm
LB - Body Length	4.67mm
BHTA - Body Half Taper Angle	30deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.016kg
OAL - Overall Length	60mm
OHX - Maximum Overhang	32mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0mm
LU - Usable Length	2.5mm
APMX - Depth Of Cut Maximum	0.5mm
DC - Cutting Diameter	0.5mm
DCF - Cutting Diameter Face Contact	0.5mm
DN - Neck Diameter	0.46mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	5
ORDCODE	2P212-0050-PC 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F3000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:52:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
