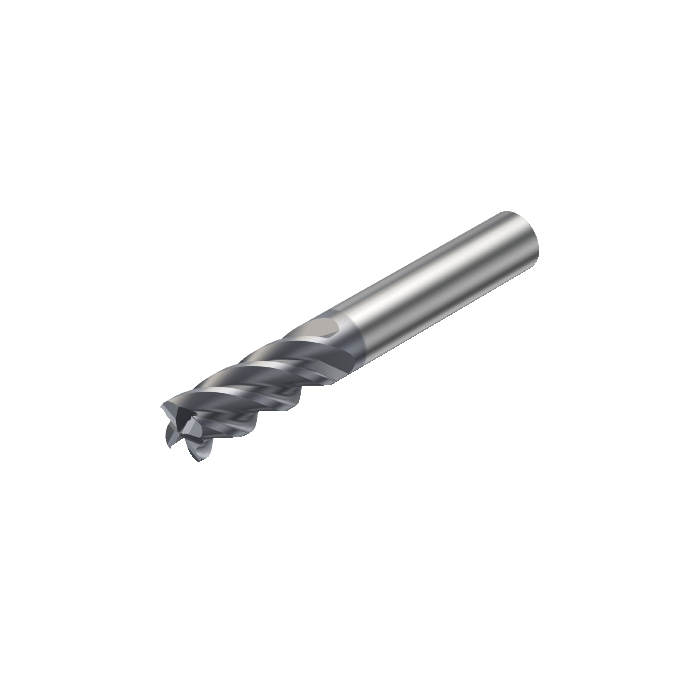

Sandvik Coromant 2P341-1200-MA 1640 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2P341-1200-MA 1640 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 6260126
Price: 3392.50 ZAR
Availability: InStock

Be the first to review this product

R 3 392,50 inc. vat

In stock

SKU

6260126

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	83mm
RPMX - Rotational Speed Maximum	438001/min
WT - Weight Of Item	0.132kg
OAL - Overall Length	83mm
OHX - Maximum Overhang	38mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
LU - Usable Length	26mm
APMX - Depth Of Cut Maximum	26mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.15mm
DC - Cutting Diameter	12mm
DCF - Cutting Diameter Face Contact	11.7mm
FHA - Flute Helix Angle	41deg
GAMF - Radial Rake Angle	15deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	2.166666666667
ORDCODE	2P341-1200-MA 1640
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_G1200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:53:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1640
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
