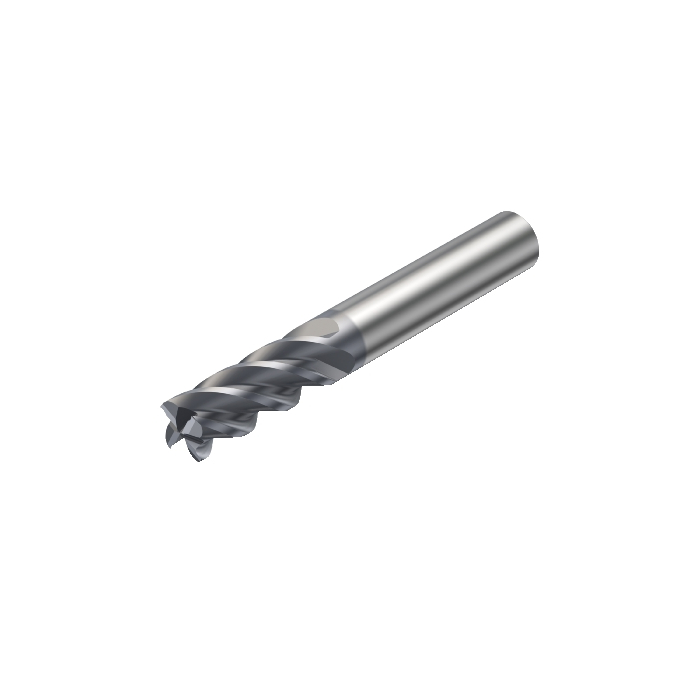

Sandvik Coromant 2P341-2500-MA 1640 CoroMill™ Plura solid carbide end mill for High Feed Side milling

R 11 107,85 inc. vat
In stock
SKU
6260131
CoroMill® Plura solid carbide end mill for High Feed Side milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for High Feed Side milling
More Information
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 121mm
RPMX - Rotational Speed Maximum 82001/min
WT - Weight Of Item 0.776kg
OAL - Overall Length 121mm
OHX - Maximum Overhang 67mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 5deg
LU - Usable Length 45mm
APMX - Depth Of Cut Maximum 45mm
KCH - Corner Chamfer 45deg
CHW - Corner Chamfer Width 0.2mm
DC - Cutting Diameter 25mm
DCF - Cutting Diameter Face Contact 24.6mm
FHA - Flute Helix Angle 41deg
GAMF - Radial Rake Angle 15deg
GAMP - Axial Rake Angle 13.5deg
ULDR - Usable Length Diameter Ratio 1.8
ORDCODE 2P341-2500-MA 1640
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_G2500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-04-22 09:53:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1640
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6527 L
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CCC - Center Cutting Capability True
CPDF - Cutting Pitch Differential False
