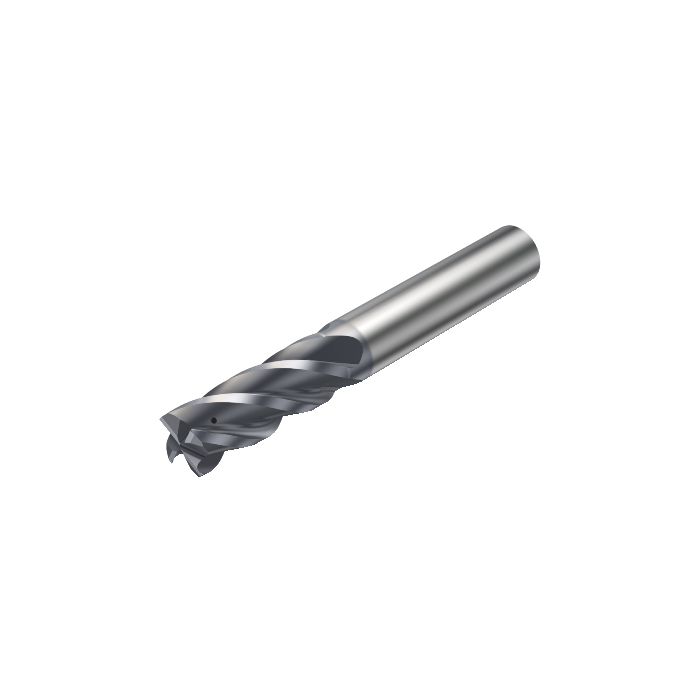

Sandvik Coromant 2P342-0794-CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling

Name: Sandvik Coromant 2P342-0794-CMA 1740 CoroMill™ Plura solid carbide end mill for Heavy Duty milling
SKU: 6732518
Price: 2311.50 ZAR
Availability: InStock

Be the first to review this product

R 2 311,50 inc. vat

In stock

SKU

6732518

CoroMill® Plura solid carbide end mill for Heavy Duty milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Heavy Duty milling

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	7.9375mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63.5mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.037kg
OAL - Overall Length	63.5mm
OHX - Maximum Overhang	27.4mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
LU - Usable Length	19.05mm
APMX - Depth Of Cut Maximum	19.05mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.102mm
DC - Cutting Diameter	7.938mm
DCF - Cutting Diameter Face Contact	7.734mm
FHA - Flute Helix Angle	38deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	10.5deg
ULDR - Usable Length Diameter Ratio	2.39984882842
ORDCODE	2P342-0794-CMA 1740
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R3125_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:55:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1740
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
