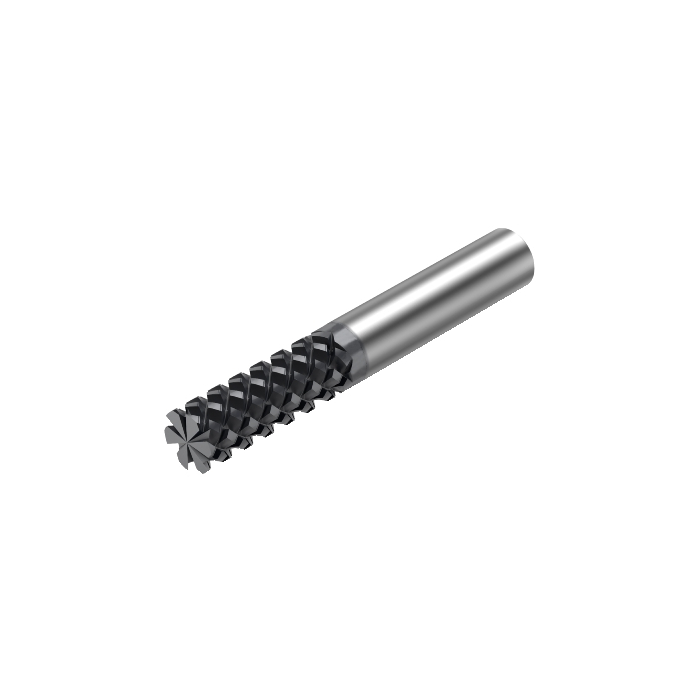

Sandvik Coromant 2P350-1270-OA O12M CoroMill™ Plura solid carbide end mill for Edging applications

Name: Sandvik Coromant 2P350-1270-OA O12M CoroMill™ Plura solid carbide end mill for Edging applications
SKU: 7254455
Price: 7473.85 ZAR
Availability: InStock

Be the first to review this product

R 7 473,85 inc. vat

In stock

SKU

7254455

CoroMill® Plura solid carbide end mill for Edging applications

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Edging applications

More Information

More Information
DCON - Connection Diameter	12.7mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	82.5mm
RPMX - Rotational Speed Maximum	240001/min
WT - Weight Of Item	0.112kg
OAL - Overall Length	82.5mm
OHX - Maximum Overhang	37.5mm
LSC - Clamping Length	45mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	30deg
RE - Corner Radius	0mm
APMX - Depth Of Cut Maximum	31.8mm
DC - Cutting Diameter	12.7mm
DCF - Cutting Diameter Face Contact	12.7mm
FHA - Flute Helix Angle	40deg
GAMF - Radial Rake Angle	20deg
GAMP - Axial Rake Angle	40deg
ORDCODE	2P350-1270-OA O12M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R5000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-07 12:05:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	O12M
COATING	DCT Sp3
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	OA
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
