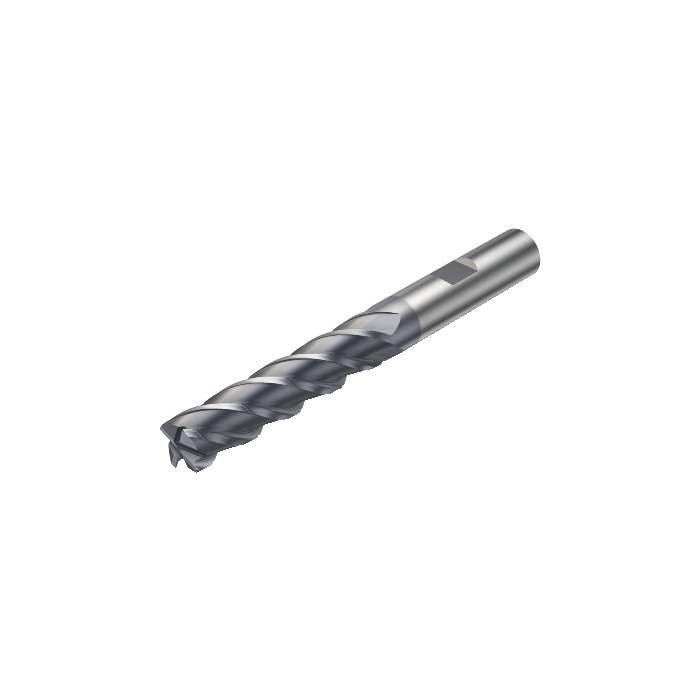

Sandvik Coromant 2P370-2500-PB 1740 CoroMill™ Plura solid carbide end mill for High Feed Side milling

Name: Sandvik Coromant 2P370-2500-PB 1740 CoroMill™ Plura solid carbide end mill for High Feed Side milling
SKU: 6915295
Price: 13478.00 ZAR
Availability: OutOfStock

Be the first to review this product

R 13 478,00 inc. vat

Out of stock

SKU

6915295

CoroMill® Plura solid carbide end mill for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	178mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	1.07kg
OAL - Overall Length	178mm
OHX - Maximum Overhang	122mm
LSC - Clamping Length	56mm
KAPR - Tool Cutting Edge Angle	90deg
H - Shank Height	23mm
LU - Usable Length	100mm
MHD - Mounting Hole Distance	32mm
APMX - Depth Of Cut Maximum	100mm
KCH - Corner Chamfer	45deg
CHW - Corner Chamfer Width	0.25mm
DC - Cutting Diameter	25mm
DCF - Cutting Diameter Face Contact	24.5mm
FHA - Flute Helix Angle	37deg
GAMF - Radial Rake Angle	10deg
GAMP - Axial Rake Angle	7.5deg
ULDR - Usable Length Diameter Ratio	4
DCTOLL - Lower Cutting Diameter Tolerance	-0.084mm
DCTOLU - Upper Cutting Diameter Tolerance	0mm
ORDCODE	2P370-2500-PB 1740
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_G2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-07-19 14:40:00.000
STDLET - Standard Letter	WE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1740
COATING	PVD AlTiN
SUBSTRATE	HC
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	True
