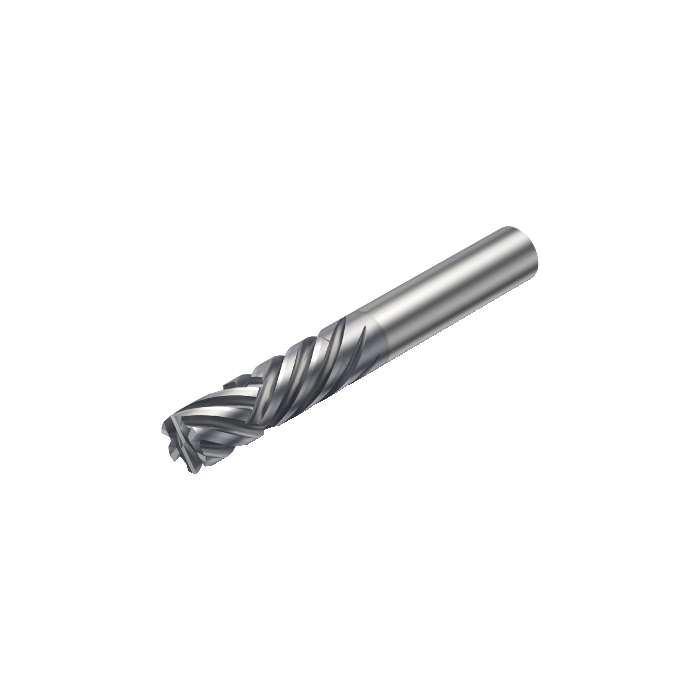

Sandvik Coromant 2P460-0600-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications

Name: Sandvik Coromant 2P460-0600-NA 1630 CoroMill™ Plura solid carbide end mill for Edging applications
SKU: 6255708
Price: 1888.30 ZAR
Availability: InStock

Be the first to review this product

R 1 888,30 inc. vat

In stock

SKU

6255708

CoroMill® Plura solid carbide end mill for Edging applications

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Edging applications

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	76mm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	0.043kg
OAL - Overall Length	76mm
OHX - Maximum Overhang	40mm
LSC - Clamping Length	36mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	0mm
LU - Usable Length	26mm
APMX - Depth Of Cut Maximum	26mm
DC - Cutting Diameter	6mm
DCF - Cutting Diameter Face Contact	6mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	12.5deg
GAMP - Axial Rake Angle	4deg
ULDR - Usable Length Diameter Ratio	4.333333333333
SPTL - Length Were Flute Helix Hand Changes Direction	6mm
ORDCODE	2P460-0600-NA 1630
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:46:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1630
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	COMPRESSION
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
